JWH5087A - 16V/20A Sync. Step-Down Converter

General Description

The JW®H5087A is a monolithic buck switching regulator based on I2 architecture for fast transient response.

Operating with an input range of 2.7V~16V, JWH5087A delivers 20A of continuous output current with two integrated N-Channel MOSFETs.

Key Features

  • 2.7V to 16V operating input range with external 3.3V VCC bias.
  • 4V to 16V operating input range with internal bias or external 3.3V VCC bias.
  • 20A output current.
  • Differential output voltage remote sense.
  • Programmable accurate current limit level.
  • ±0.5% reference voltage over 0℃ to +70℃ junction temperature range.
  • FCCM operation mode.
  • Power good indicator.
  • Programmable soft-start time.
  • Selectable switching frequency from 700kHz, 800kHz, and 1000kH.

📥 Download Datasheet

Datasheet Details

Part number JWH5087A
Manufacturer JoulWatt
File Size 1.41 MB
Description 16V/20A Sync. Step-Down Converter
Datasheet download datasheet JWH5087A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by JoulWatt

Part Number Description
JWH5084 17V/12A Sync. Step-Down Converter
JWH5085 16V/12A Sync. Step-Down Converter
JWH5123 65V/3.5A Asynchronous Step-Down Converter
JWH5125 5V/5A Asynchronous Step-Down Converter
JWH5125C 65V/5A Asynchronous Step-Down Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

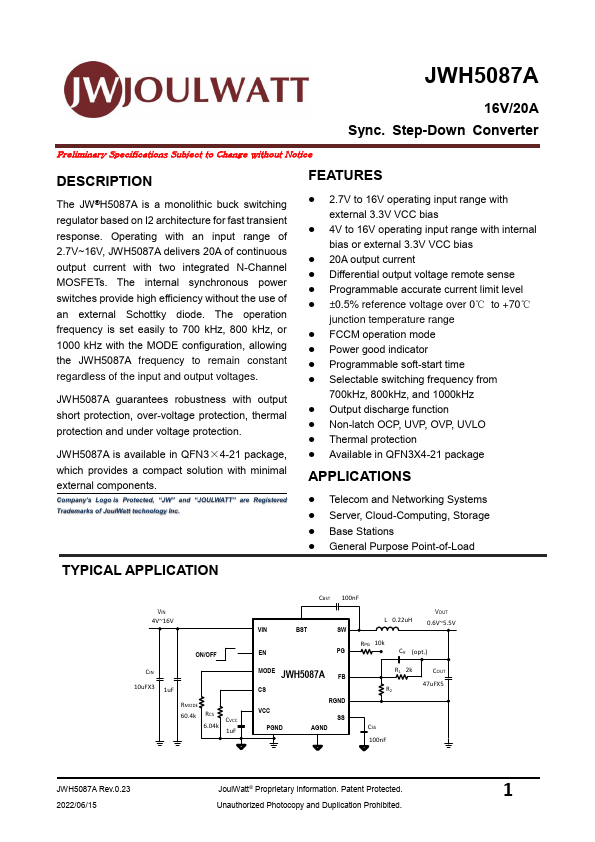

JWH5087A 16V/20A Sync. Step-Down Converter Preliminary Specifications Subject to Change without Notice DESCRIPTION The JW®H5087A is a monolithic buck switching regulator based on I2 architecture for fast transient response. Operating with an input range of 2.7V~16V, JWH5087A delivers 20A of continuous output current with two integrated N-Channel MOSFETs. The internal synchronous power switches provide high efficiency without the use of an external Schottky diode. The operation frequency is set easily to 700 kHz, 800 kHz, or 1000 kHz with the MODE configuration, allowing the JWH5087A frequency to remain constant regardless of the input and output voltages.
