JWH5085 - 16V/12A Sync. Step-Down Converter

Key Features

  • The JW®H5085 is a monolithic buck switching regulator based on I2 architecture for fast transient response. Operating with an input range of 2.7V~16V, JWH5085 delivers 12A of continuous output current with two integrated N-Channel MOSFETs. The internal synchronous power switches provide high efficiency without the use of an external Schottky diode. The operation frequency is set easily to 600 kHz, 800 kHz, or 1000 kHz with the MODE configuration, allowing the JWH5085 frequency to remain constan.

📥 Download Datasheet

Datasheet Details

Part number JWH5085
Manufacturer JoulWatt
File Size 642.02 KB
Description 16V/12A Sync. Step-Down Converter
Datasheet download datasheet JWH5085 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by JoulWatt

Part Number Description
JWH5084 17V/12A Sync. Step-Down Converter
JWH5087A 16V/20A Sync. Step-Down Converter
JWH5123 65V/3.5A Asynchronous Step-Down Converter
JWH5125 5V/5A Asynchronous Step-Down Converter
JWH5125C 65V/5A Asynchronous Step-Down Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

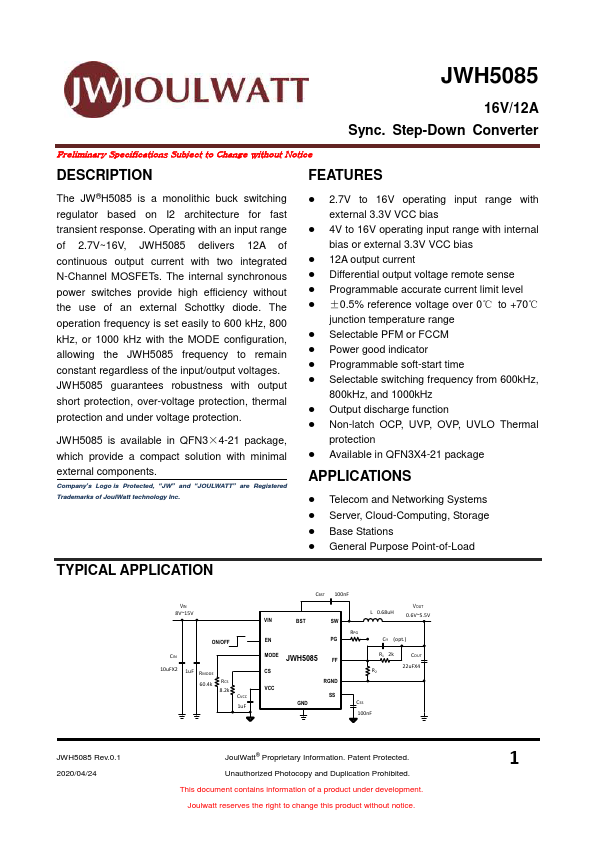

JWH5085 16V/12A Sync. Step-Down Converter Preliminary Specifications Subject to Change without Notice DESCRIPTION FEATURES The JW®H5085 is a monolithic buck switching regulator based on I2 architecture for fast transient response. Operating with an input range of 2.7V~16V, JWH5085 delivers 12A of continuous output current with two integrated N-Channel MOSFETs. The internal synchronous power switches provide high efficiency without the use of an external Schottky diode. The operation frequency is set easily to 600 kHz, 800 kHz, or 1000 kHz with the MODE configuration, allowing the JWH5085 frequency to remain constant regardless of the input/output voltages.
