JWH5123 - 65V/3.5A Asynchronous Step-Down Converter

General Description

The JW®H5123 series are current mode monolithic buck switching regulators.

Operating with an input range of 4.5V~65V, the JWH5123 series delivers 3.5A of continuous output current with an integrated high side N-Channel MOSFET.

Key Features

  • 4.5V to 65V operating input range 3.5A output current.
  • 0.8V ± 1% internal voltage reference (JWH5123).
  • 0.75V ± 1% internal voltage reference (JWH5123S/JWH5123P).
  • Adjustable switching frequency.
  • Power Good Indicator (JWH5123/ JWH5123P).
  • External Soft-start (JWH5123/ JWH5123S).
  • Adjustable UVLO and hysteresis.
  • Current run-away protection.
  • Short circuit protection.
  • Thermal protection.

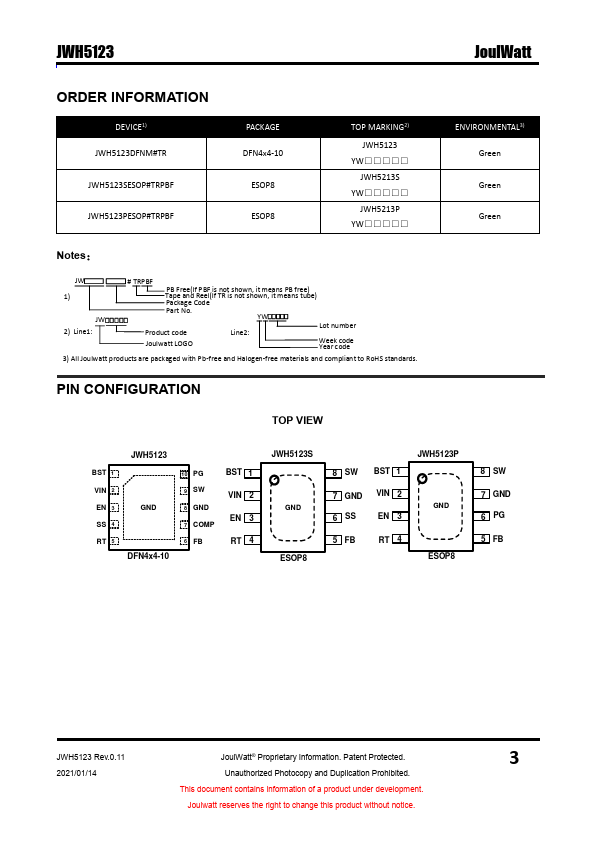

  • Available in DFN4x4-10 package (JWH5123).
  • Available in.

📥 Download Datasheet

Datasheet Details

Part number JWH5123
Manufacturer JoulWatt
File Size 927.01 KB
Description 65V/3.5A Asynchronous Step-Down Converter
Datasheet download datasheet JWH5123 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by JoulWatt

Part Number Description
JWH5125 5V/5A Asynchronous Step-Down Converter
JWH5125C 65V/5A Asynchronous Step-Down Converter
JWH5140 100V/0.6A Synchronous Step-Down Converter
JWH5140F 100V/0.6A Synchronous Step-Down Converter
JWH5084 17V/12A Sync. Step-Down Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

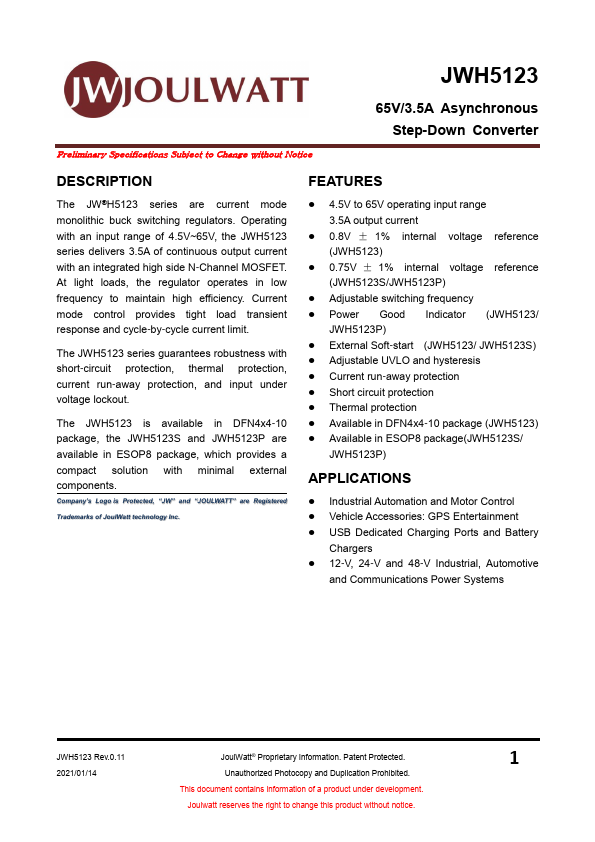

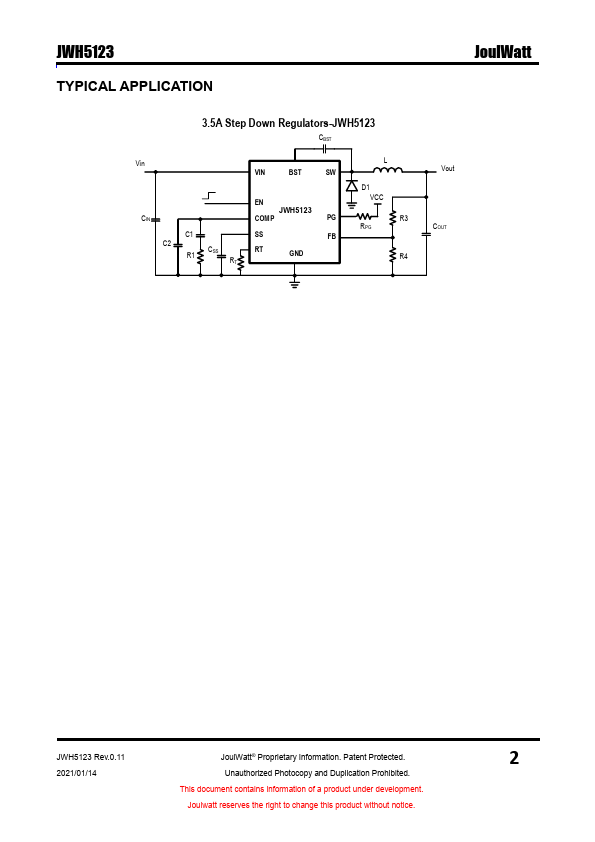

JWH5123 Preliminary Specifications Subject to Change without Notice 65V/3.5A Asynchronous Step-Down Converter DESCRIPTION The JW®H5123 series are current mode monolithic buck switching regulators. Operating with an input range of 4.5V~65V, the JWH5123 series delivers 3.5A of continuous output current with an integrated high side N-Channel MOSFET. At light loads, the regulator operates in low frequency to maintain high efficiency. Current mode control provides tight load transient response and cycle-by-cycle current limit. The JWH5123 series guarantees robustness with short-circuit protection, thermal protection, current run-away protection, and input under voltage lockout.
