JWH5125 - 5V/5A Asynchronous Step-Down Converter

General Description

The JW®H5125 is a current mode monolithic buck switching regulator.

Operating with an input range of 4.7V~65V, the JWH5125 delivers 5A of continuous output current with an integrated high side N-Channel MOSFET.

At light loads, the regulator operates in low frequency to maintain high efficiency.

Key Features

  • 4.7V to 65V operating input range 5A output current.
  • 0.8V±1% internal voltage reference.
  • Adjustable soft-start.
  • Adjustable switching frequency.
  • UV and OV power good indicator.
  • Adjustable UVLO and hysteresis.
  • Current run-away protection.
  • Short circuit protection.
  • Thermal protection.
  • Available in DFN4x4-10 package.

📥 Download Datasheet

Datasheet Details

Part number JWH5125
Manufacturer JoulWatt
File Size 646.41 KB
Description 5V/5A Asynchronous Step-Down Converter
Datasheet download datasheet JWH5125 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by JoulWatt

Part Number Description
JWH5125C 65V/5A Asynchronous Step-Down Converter
JWH5123 65V/3.5A Asynchronous Step-Down Converter
JWH5140 100V/0.6A Synchronous Step-Down Converter
JWH5140F 100V/0.6A Synchronous Step-Down Converter
JWH5084 17V/12A Sync. Step-Down Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

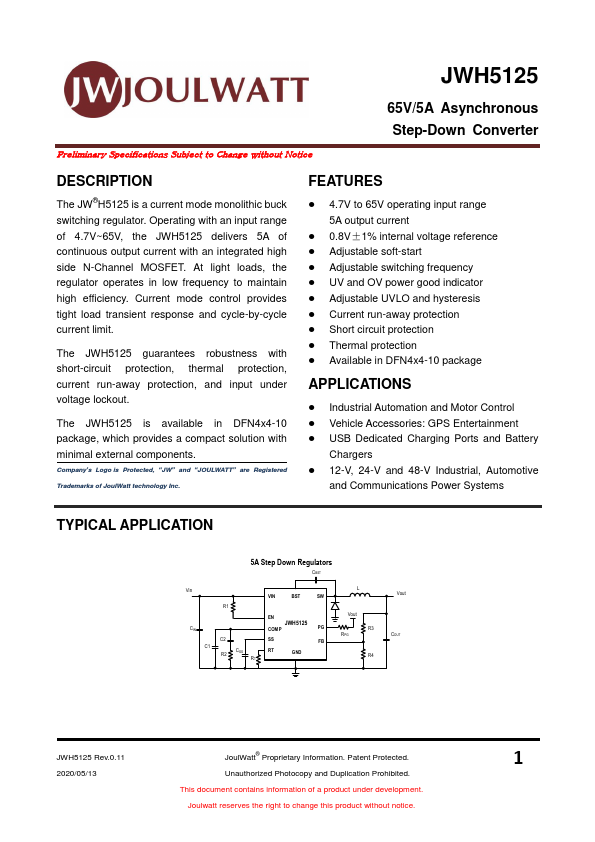

JWH5125 Preliminary Specifications Subject to Change without Notice 65V/5A Asynchronous Step-Down Converter DESCRIPTION The JW®H5125 is a current mode monolithic buck switching regulator. Operating with an input range of 4.7V~65V, the JWH5125 delivers 5A of continuous output current with an integrated high side N-Channel MOSFET. At light loads, the regulator operates in low frequency to maintain high efficiency. Current mode control provides tight load transient response and cycle-by-cycle current limit. The JWH5125 guarantees robustness with short-circuit protection, thermal protection, current run-away protection, and input under voltage lockout. The JWH5125 is available in DFN4x4-10 package, which provides a compact solution with minimal external components.
