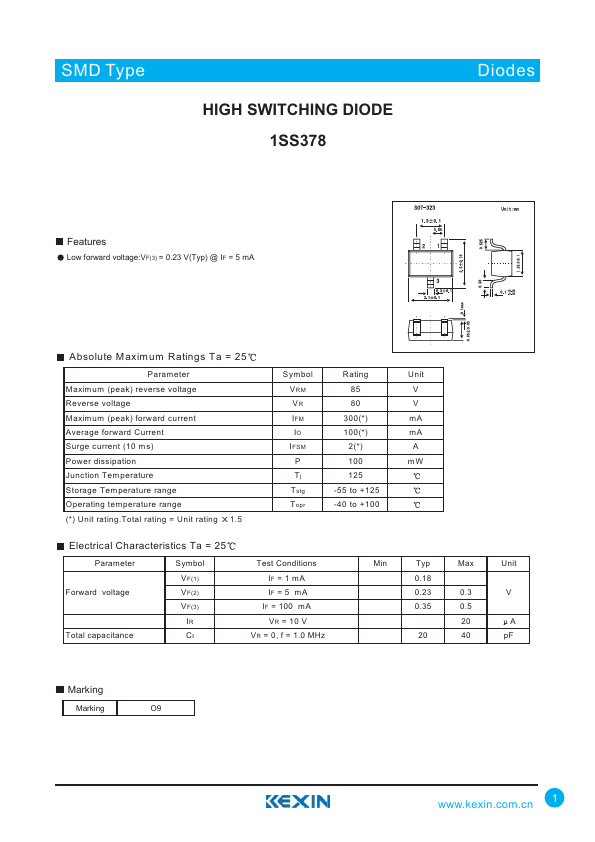

1SS378
1SS378 is HIGH SWITCHING DIODE manufactured by Kexin Semiconductor.
Features
Low forward voltage:VF(3) = 0.23 V(Typ) @ IF = 5 m A
Absolute Maxim um Ratings Ta = 25
P aram eter Maximum (peak) reverse voltage Reverse voltage Maximum (peak) forward current Average forward Current Surge current (10 ms) Power dissipation Junction Temperature Storage Temperature range Operating temperature range (- ) Unit rating.Total rating = Unit rating 1.5
Symbol VRM VR IFM IO IFSM P Tj Tstg Topr
Rating 85 80
300(- ) 100(- )
2(- ) 100 125 -55 to +125 -40 to +100
Unit V V m A m A A m W
Electrical Characteristics Ta = 25
Parameter Forward voltage
Total capacitance
Symbol VF(1) VF(2) VF(3) IR Ct
Test Conditions IF = 1 m A IF = 5 m A
IF = 100 m A VR = 10 V
VR = 0, f = 1.0 MHz
Min
Typ
Max
Unit
40 p F
Marking
Marking
O9
