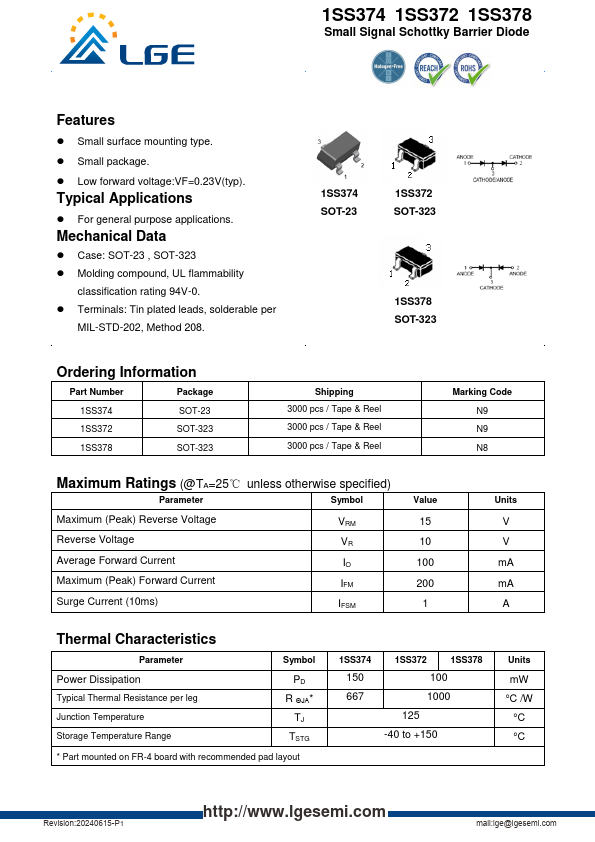

1SS378
1SS378 is Small Signal Schottky Barrier Diode manufactured by LGE.
- Part of the 1SS372 comparator family.
- Part of the 1SS372 comparator family.
Features
- Small surface mounting type.
- Small package.
- Low forward voltage:VF=0.23V(typ).
Typical Applications
- For general purpose applications.
Mechanical Data
- Case: SOT-23 , SOT-323
- Molding pound, UL flammability classification rating 94V-0.
- Terminals: Tin plated leads, solderable per
MIL-STD-202, Method 208.
1SS374 SOT-23
1SS372 SOT-323
1SS378 SOT-323
Ordering Information
Part Number
Package
1SS374
SOT-23
1SS372
SOT-323
SOT-323
Shipping 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel
Marking Code N9 N9 N8
Maximum Ratings (@TA=25℃ unless otherwise specified)
Parameter
Symbol
Maximum (Peak) Reverse Voltage
Reverse Voltage
Average Forward Current
Maximum (Peak) Forward Current
Surge Current (10ms)
IFSM
Value
15 10 100 200...
