Kexin Electronics 1SS401
Surface Mount Schottky Barrier Diode
1SS401 Specifications
- Max Output Current : 300mA
- Terminals : 2
- Reverse Standoff Voltage : 20V
- Forward Voltage : 450mV
- Max Forward Surge : 700mA
- Max Power Dissipation : 100mW
- Max Operating Temp : 100°C
- Min Operating Temp : -40°C
Source:
Octopart
| Part No. | 1SS401 |
|---|---|
| Datasheet | 1SS401 Download |
| Manufacturer | Kexin Electronics |
| Description | Surface Mount Schottky Barrier Diode |
| Buy | Stock & Price |

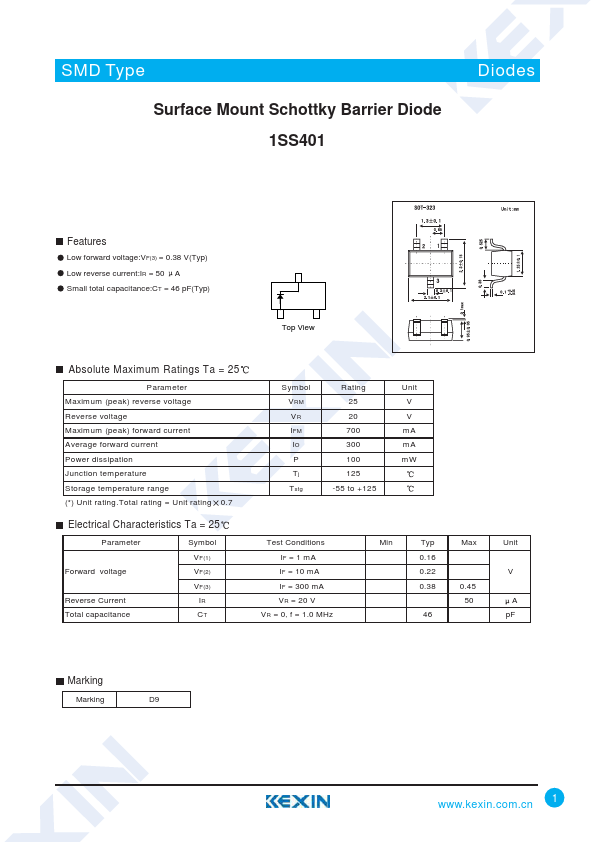

FEATURES
Low forward voltage:VF(3) = 0.38 V(Typ) Low reverse current:IR = 50 A Small total capacitance:CT = 46 pF(Typ) Top ViewABSOLUTE MAXIMUM RATINGS
Ta = 25 Parameter Maximum (peak) reverse voltage Reverse voltage Maximum (peak) forward current Average forward current Power dissipation Junction temperature Storage temperature range (*) Unit rating.Total rating = Unit rating 0.7 Symbol VRM VR IFM IO P Tj Tstg Rating 25 20 700 300 100 125 -55 to +125 Unit V V mA mA mWELECTRICAL CHARACTERISTICS

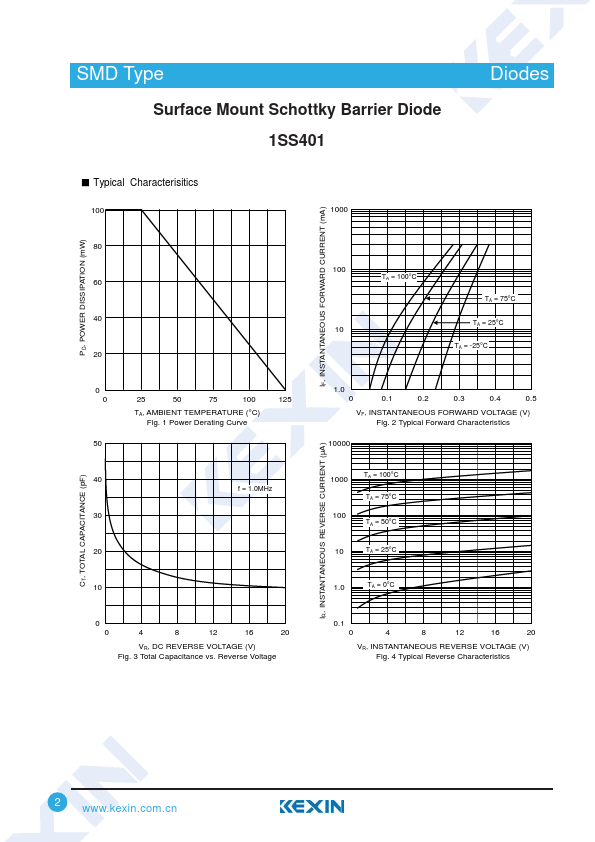

Ta = 25 Parameter Forward voltage Reverse Current Total capacitance Symbol VF(1) VF(2) VF(3) IR CT Test Conditions IF = 1 mA IF = 10 mA IF = 300 mA VR = 20 V VR = 0, f = 1.0 MHz Min Typ Max Unit 0.16 0.22 V 0.38 0.45 50 A 46 pF Marking Marking D9 1 SMD Type Surface Mount Schottky Barrier Diode 1SS401 Diodes PD, POWER DISSIPATION (mW)● Typical Characterisitics 100 80 60 40 20 0 0 25 50 75 100 125 TA, AMBIENT TEMPERATURE (°C) Fig. 1 Power Derating Curve 50 40 f = 1.0MHz 30 20 10 0 0 4 8 12 16 20 VR, DC REVERSE VOLTAGE (V) Fig.
