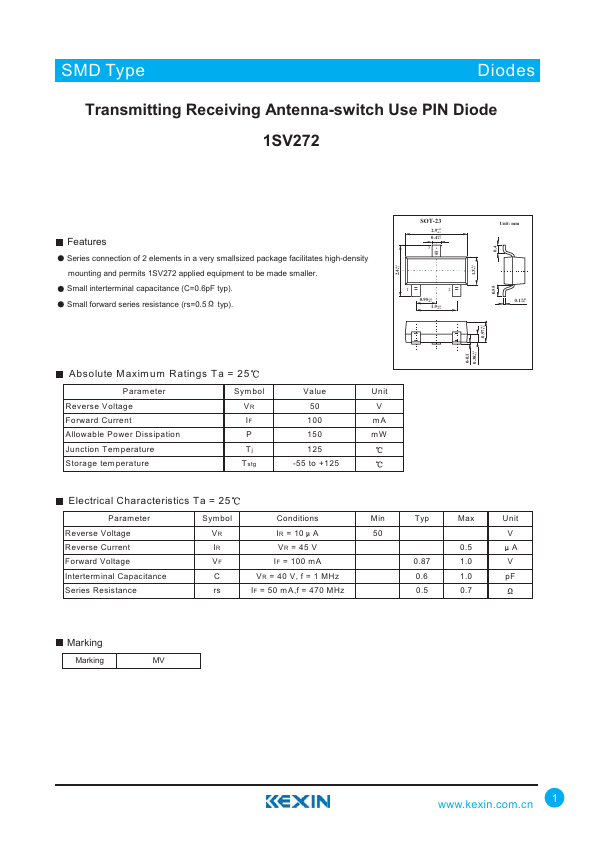

1SV272
Features
Series connection of 2 elements in a very smallsized package facilitates high-density mounting and permits 1SV272 applied equipment to be made smaller. Small interterminal capacitance (C=0.6p F typ). Small forward series resistance (rs=0.5 typ).
+0.1 2.4 -0.1
SOT-23
2.9+0.1 -0.1
0.4+0.1 -0.1
0.95+0.1 -0.1 1.9+0.1 -0.1
Absolute Maxim um Ratings Ta = 25
P aram eter Reverse Voltage Forward Current Allowable Power Dissipation Junction Tem perature Storage temperature
Sym bol VR IF P Tj T stg
Value 50 100 150 125
-55 to +125
Unit V m A m W
0-0.1 +0.1 0.38
-0.1
+0.1 1.3 -0.1
+0.1 0.97 -0.1
Unit: mm
0.1+0.05 -0.01
1.Base 2.Emitter 3.collector
Electrical Characteristics Ta = 25
P aram eter Reverse Voltage Reverse Current Forward Voltage Interterminal Capacitance Series Resistance
Symbol
Conditions
Min
IR = 10 A
VR = 45 V
IF = 100 m A
VR = 40 V, f = 1 MHz rs
IF = 50 m A,f = 470...
