2KK5085DFN - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 100 V.
  • ID = 60 A.
  • RDS(ON) (at VGS = 10 V) < 8.2 mΩ PDFN5x6-8 S D S D S D G D.
  • Absolute Maximum Ratings (TC = 25℃ unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Package Limited Continuous Drain Current ID TC = 100℃ Pulsed Drain Current (Note 1) IDM Power Dissipation PD Derating factor Single Pulse Avalanche Energy (Note 2) EAS Thermal Resistance. Junction- to-Case (Note 3) RθJC Junction Temper.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2KK904 N-Channel Silicon Power MOS FET Fuji Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
2KK5081DFN N-Channel MOSFET
2KK5082DFN N-Channel MOSFET
2KK5086DFN N-Channel MOSFET
2KK5087DFN N-Channel MOSFET
2KK5088 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

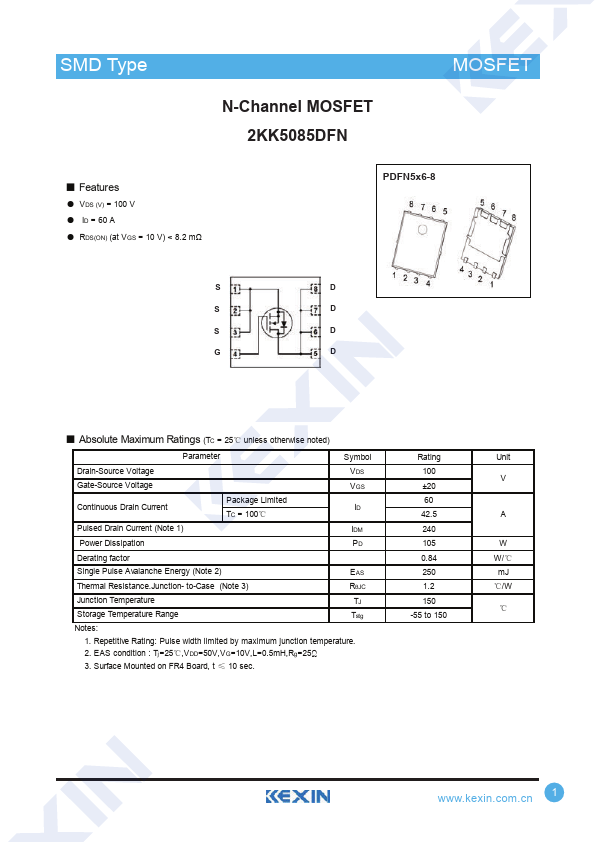

SMD Type MOSFET N-Channel MOSFET 2KK5085DFN ■ Features ● VDS (V) = 100 V ● ID = 60 A ● RDS(ON) (at VGS = 10 V) < 8.2 mΩ PDFN5x6-8 S D S D S D G D ■ Absolute Maximum Ratings (TC = 25℃ unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Package Limited Continuous Drain Current ID TC = 100℃ Pulsed Drain Current (Note 1) IDM Power Dissipation PD Derating factor Single Pulse Avalanche Energy (Note 2) EAS Thermal Resistance.Junction- to-Case (Note 3) RθJC Junction Temperature TJ Storage Temperature Range Tstg Notes: 1. Repetitive Rating: Pulse width limited by maximum junction temperature. 2. EAS condition : Tj=25℃,VDD=50V,VG=10V,L=0.5mH,Rg=25Ω 3. Surface Mounted on FR4 Board, t ≤ 10 sec. Rating 100 ±20 60 42.
