2KK5087DFN - N-Channel MOSFET

Key Features

  • s.
  • VDS = 120 V.
  • ID (at VGS=10V) = 60 A.
  • RDS(ON) (at VGS = 10 V) < 7.0 mΩ PDFN5x6-8 S D S D S D G D.
  • Absolute Maximum Ratings (TJ = 25℃ unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (Note 1) TC = 25℃ ID TC = 100℃ Pulsed Drain Current (Note 2) IDM Avalanche Energy (Note 3) EAS Thermal Resistance, Junction- to-Ambient RθJA Thermal Resistance, Junction- to-Case RθJC Power Dissipation.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2KK904 N-Channel Silicon Power MOS FET Fuji Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
2KK5081DFN N-Channel MOSFET
2KK5082DFN N-Channel MOSFET
2KK5085DFN N-Channel MOSFET
2KK5086DFN N-Channel MOSFET
2KK5088 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

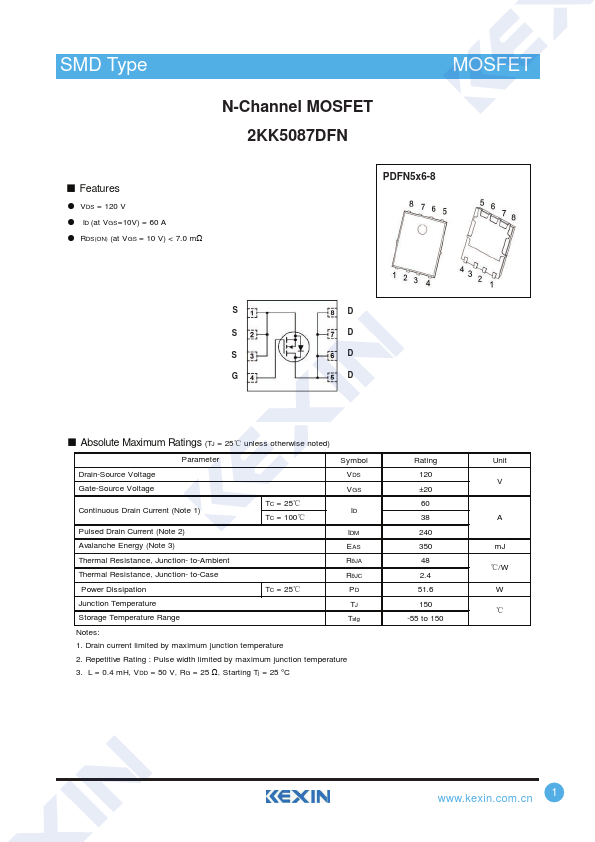

SMD Type N-Channel MOSFET 2KK5087DFN MOSFET ■ Features ● VDS = 120 V ● ID (at VGS=10V) = 60 A ● RDS(ON) (at VGS = 10 V) < 7.0 mΩ PDFN5x6-8 S D S D S D G D ■ Absolute Maximum Ratings (TJ = 25℃ unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (Note 1) TC = 25℃ ID TC = 100℃ Pulsed Drain Current (Note 2) IDM Avalanche Energy (Note 3) EAS Thermal Resistance, Junction- to-Ambient RθJA Thermal Resistance, Junction- to-Case RθJC Power Dissipation TC = 25℃ PD Junction Temperature TJ Storage Temperature Range Tstg Notes: 1. Drain current limited by maximum junction temperature 2. Repetitive Rating : Pulse width limited by maximum junction temperature 3. L = 0.
