2N7002T - N-Channel MOSFET

Features

  • s.
  • VDS (V) = 60V.
  • ID = 115mA.
  • RDS(ON) ＜ 5Ω (VGS = 10V).
  • RDS(ON) ＜ 7Ω (VGS = 5V) SOT-523 1.6 +0.1 -0.1 1.0 +0.1 -0.1 0.2 +0.05 -0.05 2 1 U nit: m m 0.15±0.05 0.55 (REF. ) 0.8±0.1 + 1.6 0.15 -0.15 0.36±0.1 3 0.5 +0.1 -0.1 0.3±0.05 + 0.75 0.05 -0.05 + 0.8 0.1 -0.1 1. Gate 2. Source 3. Drain Absolute Maximum Ratings Ta = 25℃.
  • Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Power Dissipation Thermal Resistance. Junction- to-Ambient Junct.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2N7002T N-Channel MOSFET Diodes Incorporated
2N7002T Small Signal MOSFET Transistor GME
2N7002T N-Channel MOSFET JCET
2N7002T N-Channel MOSFET Fairchild Semiconductor
2N7002T Small Signal MOSFET SeCoS

Other Datasheets by Kexin Semiconductor

Part Number Description
2N7002K N-channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

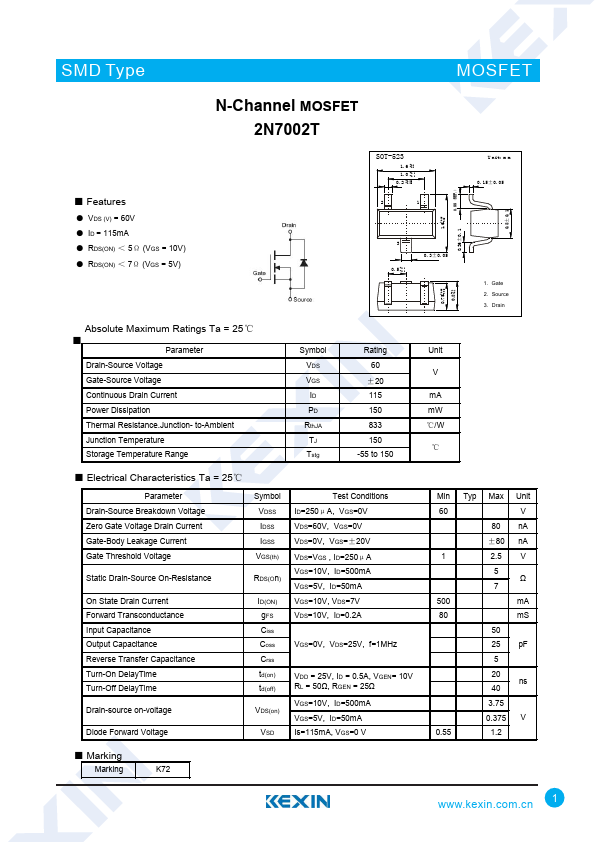

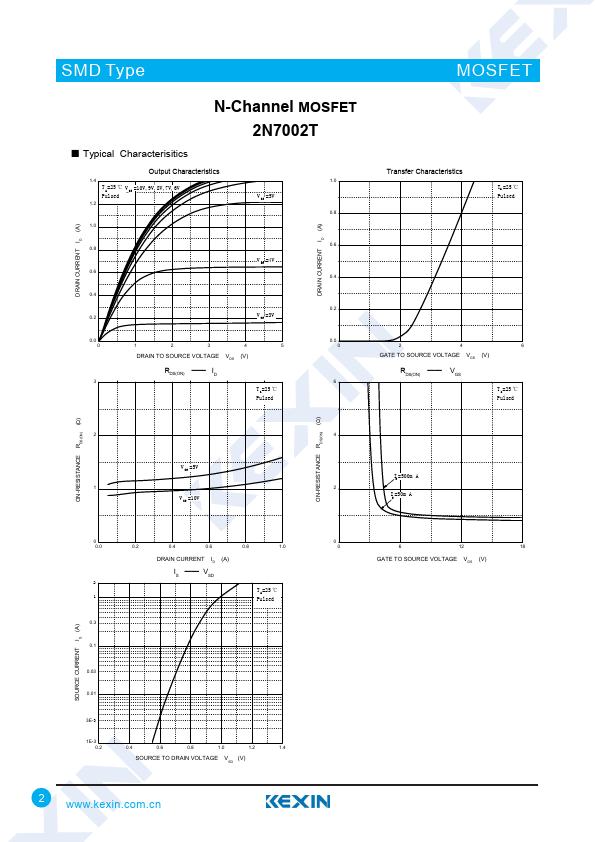

SMD Type MOSFET N-Channel MOSFET 2N7002T ■ Features ● VDS (V) = 60V ● ID = 115mA ● RDS(ON) ＜ 5Ω (VGS = 10V) ● RDS(ON) ＜ 7Ω (VGS = 5V) SOT-523 1.6 +0.1 -0.1 1.0 +0.1 -0.1 0.2 +0.05 -0.05 2 1 U nit: m m 0.15±0.05 0.55 (REF.) 0.8±0.1 + 1.6 0.15 -0.15 0.36±0.1 3 0.5 +0.1 -0.1 0.3±0.05 + 0.75 0.05 -0.05 + 0.8 0.1 -0.1 1. Gate 2. Source 3. Drain Absolute Maximum Ratings Ta = 25℃ ■ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Power Dissipation Thermal Resistance.
