2SA2018 - PNP Transistors

Key Features

  • s.
  • A collector current is large.
  • Low VCE(sat). VCE(sat)≤-250mV at IC = -200mA / IB = -10mA SOT-523 1.6 +0.1 -0.1 1.0 +0.1 -0.1 0.2 +0.05 -0.05 2 1 +0.15 1.6 -0.15 3 0.5 +0.1 -0.1 0.3±0.05 +0.05 0.75 -0.05 +0.1 0.8 -0.1 0.55 (REF. ) 0.36±0.1 U nit: m m 0.15±0.05 1. Base 2. Emitter 3. Collecter 0.8±0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Unit Collector - Base Voltage VCBO -15 Collector - Emitter Voltage VCEO -12 V Emitter - Base Voltage.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SA2018 LOW FREQUENCY TRANSISTOR GME
2SA2018 Low frequency transistor Rohm
2SA2018 PNP Transistor MLSM
2SA2018F PNP Transistor SeCoS
2SA2018F-C PNP Transistor SeCoS

Other Datasheets by Kexin Semiconductor

Part Number Description
2SA2058 PNP Transistors
2SA2071-Q PNP Transistors
2SA1013 PNP Transistors
2SA1015 PNP Transistor
2SA1022 PNP Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

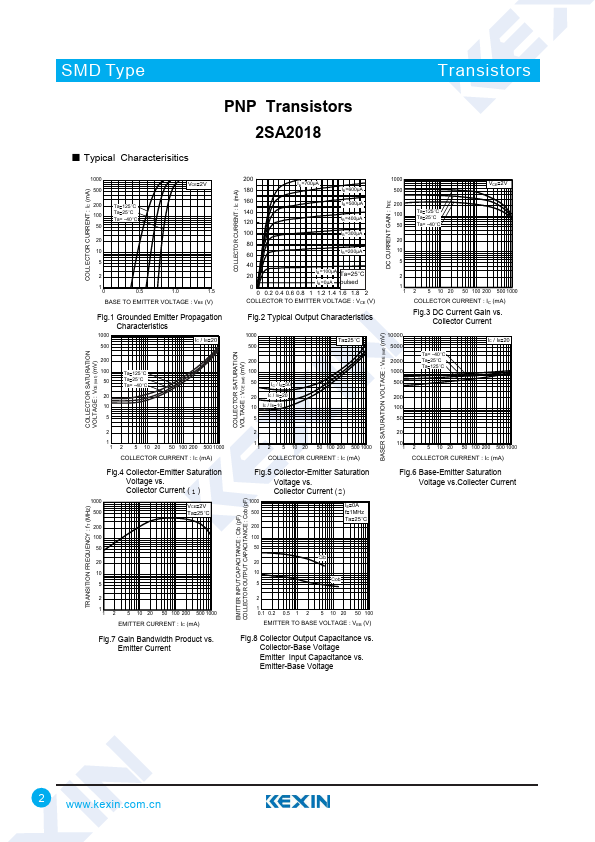

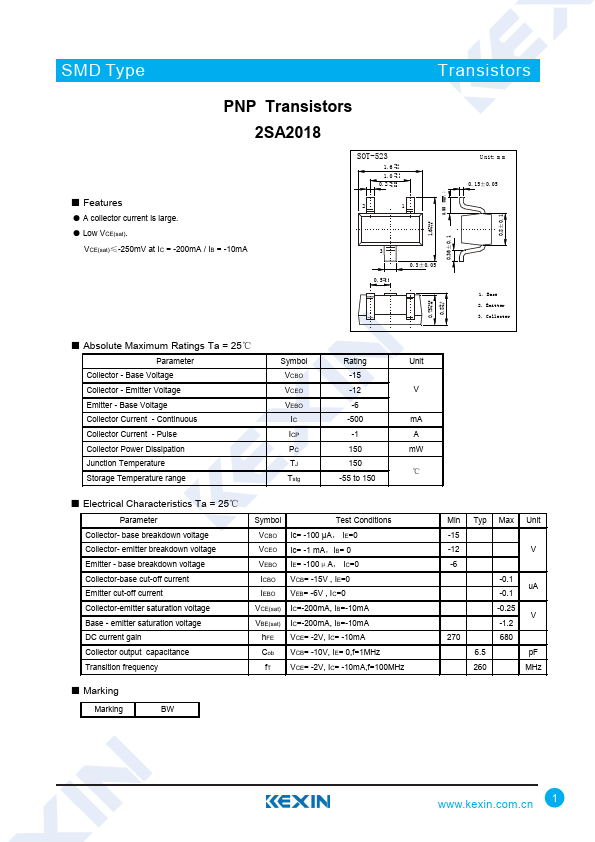

SMD Type Transistors PNP Transistors 2SA2018 ■ Features ● A collector current is large. ● Low VCE(sat). VCE(sat)≤-250mV at IC = -200mA / IB = -10mA SOT-523 1.6 +0.1 -0.1 1.0 +0.1 -0.1 0.2 +0.05 -0.05 2 1 +0.15 1.6 -0.15 3 0.5 +0.1 -0.1 0.3±0.05 +0.05 0.75 -0.05 +0.1 0.8 -0.1 0.55 (REF.) 0.36±0.1 U nit: m m 0.15±0.05 1. Base 2. Emitter 3. Collecter 0.8±0.
