2SC3265 - NPN Transistors

Key Features

  • s.
  • High DC current gain.
  • Low saturation voltage.
  • Complementary to 2SA1298 NPN Transistors 2SC3265 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 +0.1 2.4 -0.1 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 +0.1 0.97 -0.1 1.Base 2.Emitter 3.collector 0-0.1 +0.1 0.38 -0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Unit Collector - Base Voltage VCBO 30 Collector - Emitter Voltage VCEO 25 V Emitter - Base Voltage.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SC3265 Silicon NPN TRANSISTOR Toshiba Semiconductor
2SC3265 SOT-23 Plastic-Encapsulate Transistors UMW
2SC3265 NPN Transistors EVVOSEMI
2SC3265 NPN General Purpose Amplifier MCC
2SC3265-O NPN Amplifier MCC

Other Datasheets by Kexin Semiconductor

Part Number Description
2SC3233 NPN Silicon Triple Diffused Transistor
2SC3295 Silicon NPN Epitaxial Transistor
2SC3011 Silicon NPN Epitaxial Transistor
2SC3052 NPN Transistor
2SC3072 Silicon NPN Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

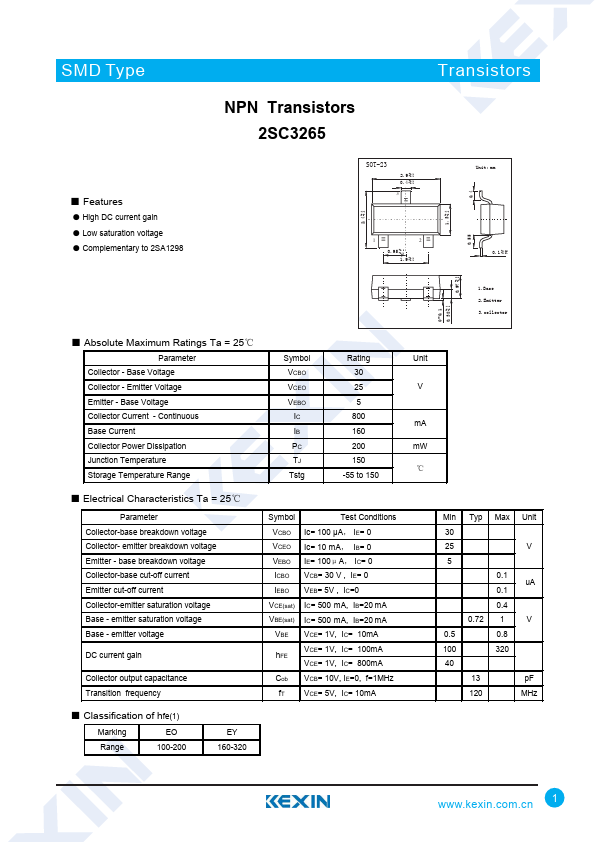

SMD Type Transistors ■ Features ● High DC current gain ● Low saturation voltage ● Complementary to 2SA1298 NPN Transistors 2SC3265 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 +0.1 2.4 -0.1 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 +0.1 0.97 -0.1 1.Base 2.Emitter 3.collector 0-0.1 +0.1 0.38 -0.
