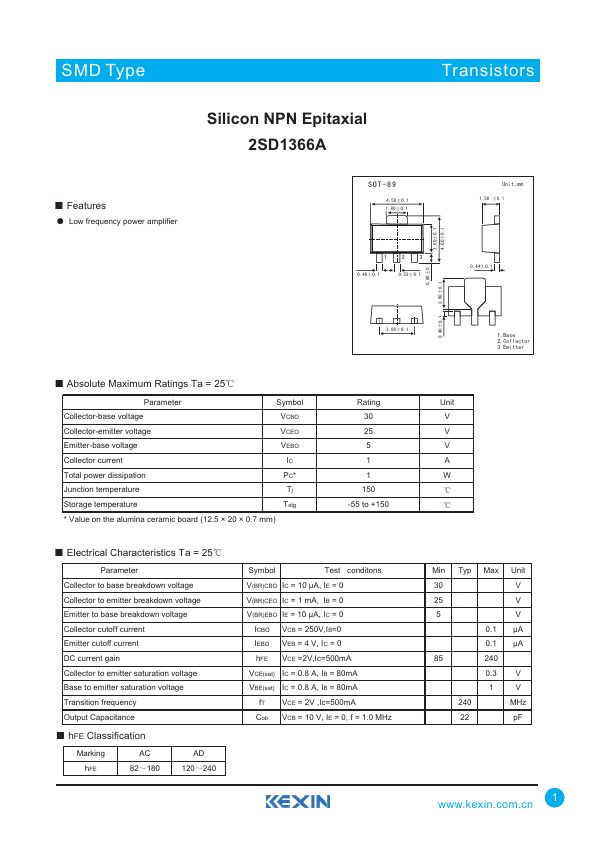

2SD1366A
2SD1366A is Silicon NPN Epitaxial Transistors manufactured by Kexin Semiconductor.
Features
- Low frequency power amplifier
SOT-89
4.50±0.1 1.80±0.1
0.48±0.1
0.53±0.1
2.50±0.1 4.00±0.1
Unit:mm 1.50 ±0.1
0.44±0.1
0.80±0.1 2.60±0.1
0.40±0.1
3.00±0.1
1.Base 2.Collector 3.Emitter
- Absolute Maximum Ratings Ta = 25℃
Parameter
Symbol
Collector-base voltage
VCBO
Collector-emitter voltage
VCEO
Emitter-base voltage
VEBO
Collector current
Total power dissipation
PC-
Junction temperature
Tj
Storage temperature
Tstg
- Value on the alumina ceramic board (12.5 × 20 × 0.7 mm)
Rating 30 25 5 1 1 150
-55 to +150
- Electrical Characteristics Ta = 25℃
Parameter Collector to base breakdown voltage Collector to emitter breakdown voltage Emitter to base breakdown voltage Collector cutoff current Emitter cutoff current DC current gain Collector to emitter saturation voltage Base to emitter saturation voltage Transition frequency Output Capacitance
- h FE Classification
Marking h FE
AC 82～180
AD...
