2SJ203 - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-16V.
  • ID =-200m A.
  • RDS(ON) ＜ 23Ω (VGS =-2.5V).
  • RDS(ON) ＜ 10Ω (VGS =-4V) +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 0.55 0.4 MOSFET Unit: mm 0.15 +0.02 -0.02 +0.2 1.1 -0.1 0-0.1 +0.1 0.68 -0.1 1. Gate 2. Source 3. Drain.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Unit Drain-Source Voltage Gate-Source Voltage VDS -16 V VGS ±7 Continuous Drain Current Pulsed Drain Cur.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SJ203 MOS FIELD EFFECT TRANSISTOR NEC
2SJ203 P-CHANNEL MOSFET Renesas
2SJ203-T1B-A 60V P-Channel MOSFET VBsemi
2SJ200 P-Channel MOSFET Toshiba Semiconductor
2SJ201 P-Channel MOSFET Toshiba Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
2SJ204 P-Channel MOSFET
2SJ205 P-Channel MOSFET
2SJ206 P-Channel MOSFET
2SJ207 P-Channel MOSFET
2SJ208 P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

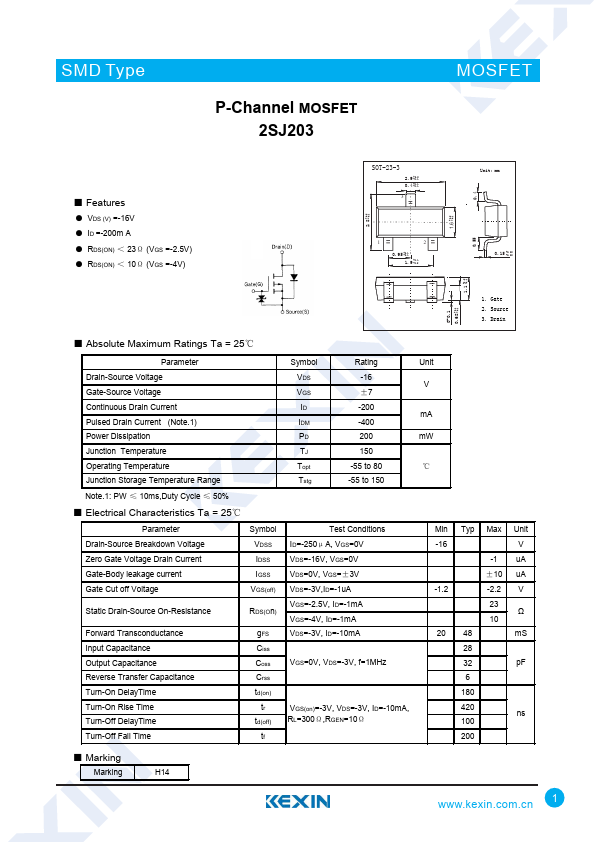

SMD Type P-Channel MOSFET 2SJ203 ■ Features ● VDS (V) =-16V ● ID =-200m A ● RDS(ON) ＜ 23Ω (VGS =-2.5V) ● RDS(ON) ＜ 10Ω (VGS =-4V) +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 0.55 0.4 MOSFET Unit: mm 0.15 +0.02 -0.02 +0.2 1.1 -0.1 0-0.1 +0.1 0.68 -0.1 1. Gate 2. Source 3. Drain ■ Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Unit Drain-Source Voltage Gate-Source Voltage VDS -16 V VGS ±7 Continuous Drain Current Pulsed Drain Current (Note.1) ID -200 mA IDM -400 Power Dissipation PD 200 mW Junction Temperature TJ 150 Operating Temperature Topt -55 to 80 ℃ Junction Storage Temperature Range Tstg -55 to 150 Note.
