2SJ203 - P-CHANNEL MOSFET

General Description

of circuits, software and other related information in this document are provided for illustrative purposes in semiconductor product operation and application examples.

Key Features

  • Directly driven by ICs having a 3 V power supply.
  • Not necessary to consider driving current because of its high input impedance.
  • Possible to reduce the number of parts by omitting the bias resistor.

📥 Download Datasheet

Datasheet Details

Part number 2SJ203
Manufacturer Renesas
File Size 306.14 KB
Description P-CHANNEL MOSFET
Datasheet download datasheet 2SJ203 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SJ203 MOS FIELD EFFECT TRANSISTOR NEC
2SJ203 P-Channel MOSFET Kexin
2SJ203-T1B-A 60V P-Channel MOSFET VBsemi
2SJ200 P-Channel MOSFET Toshiba Semiconductor
2SJ201 P-Channel MOSFET Toshiba Semiconductor

Other Datasheets by Renesas

Part Number Description
2SJ205 P-CHANNEL MOSFET
2SJ207 P-CHANNEL MOSFET
2SJ210 P-CHANNEL MOSFET FOR SWITCHING
2SJ210C P-CHANNEL MOSFET FOR SWITCHING
2SJ221 Silicon P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

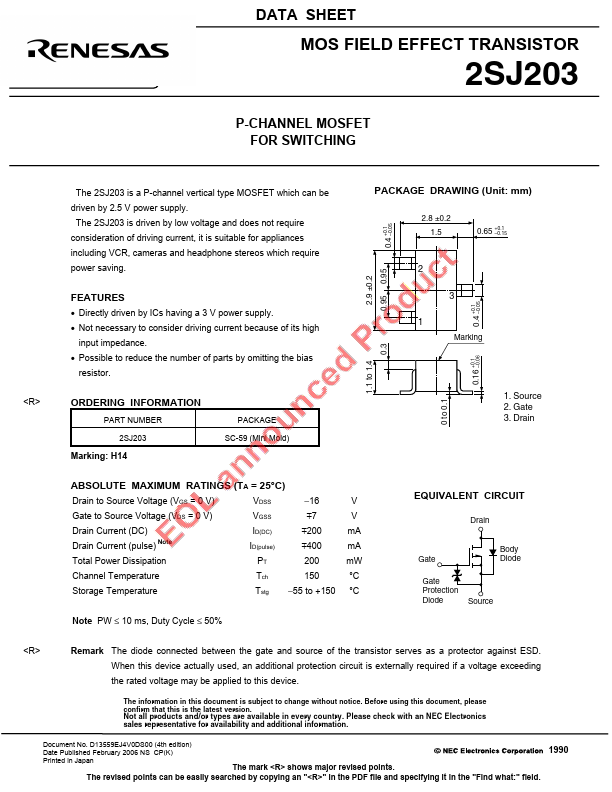

DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SJ203 P-CHANNEL MOSFET FOR SWITCHING The 2SJ203 is a P-channel vertical type MOSFET which can be driven by 2.5 V power supply. The 2SJ203 is driven by low voltage and does not require consideration of driving current, it is suitable for appliances including VCR, cameras and headphone stereos which require power saving. FEATURES • Directly driven by ICs having a 3 V power supply. • Not necessary to consider driving current because of its high input impedance. • Possible to reduce the number of parts by omitting the bias resistor. ORDERING INFORMATION PART NUMBER PACKAGE 2SJ203 SC-59 (Mini Mold) Marking: H14 1.1 to 1.4 0.3 2.9 ±0.2 0.95 0.95 0 to 0.1 PACKAGE DRAWING (Unit: mm) +0.1 –0.05 2.8 ±0.2 1.5 0.65 +0.1 –0.15 0.4 +0.1 –0.
