2SJ203-T1B-A Datasheet 60v P-channel MOSFET

Manufacturer: VBsemi

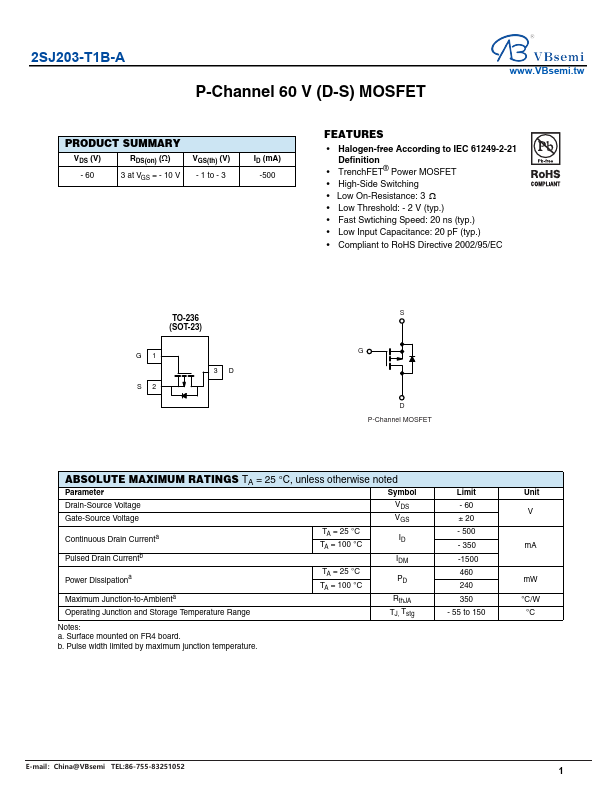

Overview: 2SJ203-T1B-A P-Channel 60 V (D-S) MOSFET www.VBsemi.tw PRODUCT SUMMARY VDS (V) RDS(on) () - 60 3 at VGS = - 10 V VGS(th) (V) - 1 to - 3 ID (mA).

2SJ203-T1B-A datasheet preview

Datasheet Details

Part number	2SJ203-T1B-A
Manufacturer	VBsemi
File Size	820.44 KB
Description	60V P-Channel MOSFET
Datasheet	2SJ203-T1B-A-VBsemi.pdf

Key Features

Halogen-free According to IEC 61249-2-21 Definition.
TrenchFET® Power MOSFET.
High-Side Switching.
Low On-Resistance: 3 .
Low Threshold: - 2 V (typ. ).
Fast Swtiching Speed: 20 ns (typ. ).
Low Input Capacitance: 20 pF (typ. ).
Compliant to RoHS Directive 2002/95/EC TO-236 (SOT-23) G1 S2 3D S G D P-Channel MOSFET.
