2SJ205 - 30V P-Channel MOSFET

VBsemi

Key Features

Halogen-free According to IEC 61249-2-21 Definition.
Trench Power MOSFET.
100 % Rg Tested.

2SJ205 30v p-channel mosfet by VBsemi - Datasheet Preview

Datasheet Details

Part number	2SJ205
Manufacturer	VBsemi
File Size	196.25 KB
Description	30V P-Channel MOSFET
Datasheet	2SJ205 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2SJ205	P-Channel MOSFET	NEC
2SJ205	P-Channel MOSFET	Kexin
2SJ205	P-CHANNEL MOSFET	Renesas
2SJ200	P-Channel MOSFET	Toshiba Semiconductor
2SJ201	P-Channel MOSFET	Toshiba Semiconductor

Other Datasheets by VBsemi

Part Number	Description
2SJ203-T1B-A	60V P-Channel MOSFET
2SJ206	30V P-Channel MOSFET
2SJ207	30V P-Channel MOSFET
2SJ211-T1B-A	P-Channel MOSFET
2SJ212	60V P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

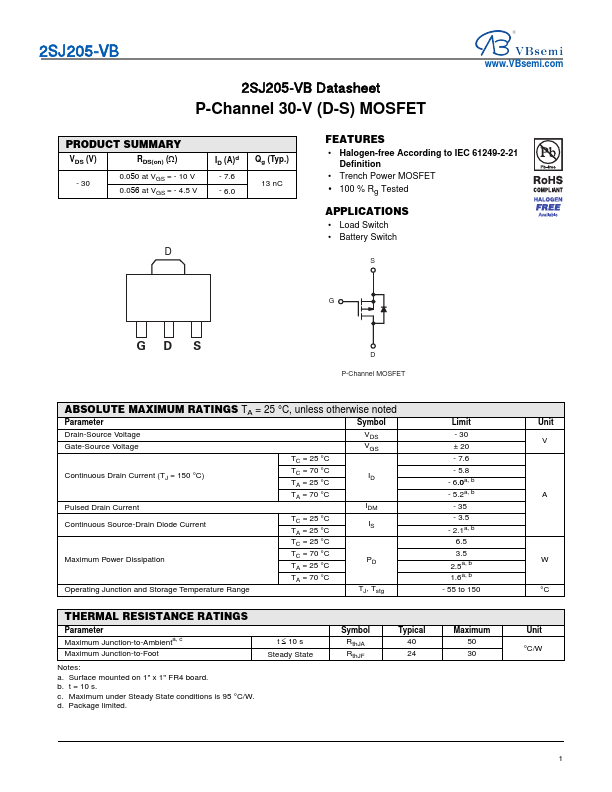

2SJ205-VB 2SJ205-VB Datasheet P-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 30 0.050 at VGS = - 10 V 0.056 at VGS = - 4.5 V ID (A)d - 7.6 - 6.0 Qg (Typ.
