2SJ205 - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-16V.
  • ID =-0.5 A (VGS =-10V).
  • RDS(ON) ＜ 3Ω (VGS =-4V).
  • RDS(ON) ＜ 5Ω (VGS =-2.5V) 1.70 0.1 0.42 0.1 0.46 0.1 1.Gate 2.Drain 3.Source.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note.1) Power Dissipation Junction Temperature Tc = 25℃ Junction Storage Temperature Range Symbol VDS VGS ID IDM PD TJ Tstg Rating -16 ±16 -0.5 -1 2 150 -55 to 150 Note.1: PW ≤ 10 ms.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SJ205 P-Channel MOSFET NEC
2SJ205 P-CHANNEL MOSFET Renesas
2SJ205 30V P-Channel MOSFET VBsemi
2SJ200 P-Channel MOSFET Toshiba Semiconductor
2SJ201 P-Channel MOSFET Toshiba Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
2SJ203 P-Channel MOSFET
2SJ204 P-Channel MOSFET
2SJ206 P-Channel MOSFET
2SJ207 P-Channel MOSFET
2SJ208 P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

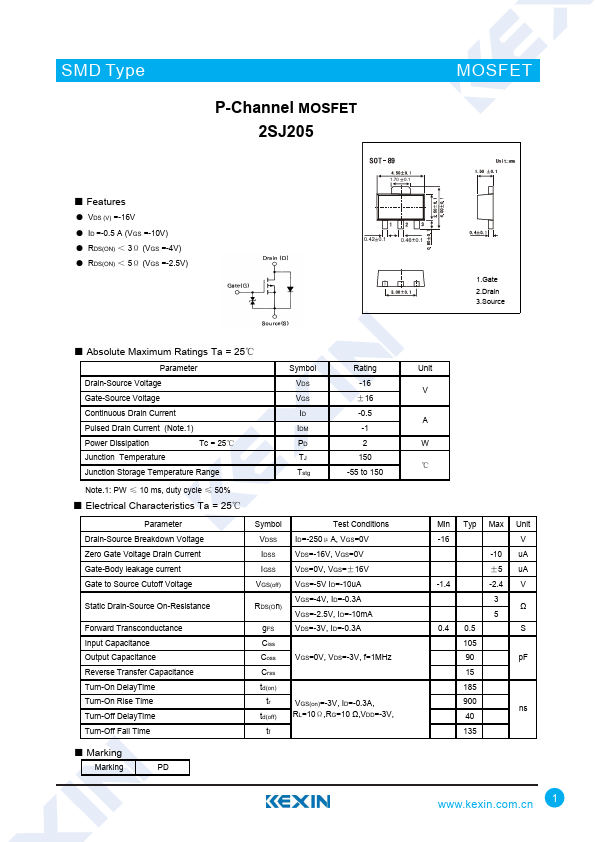

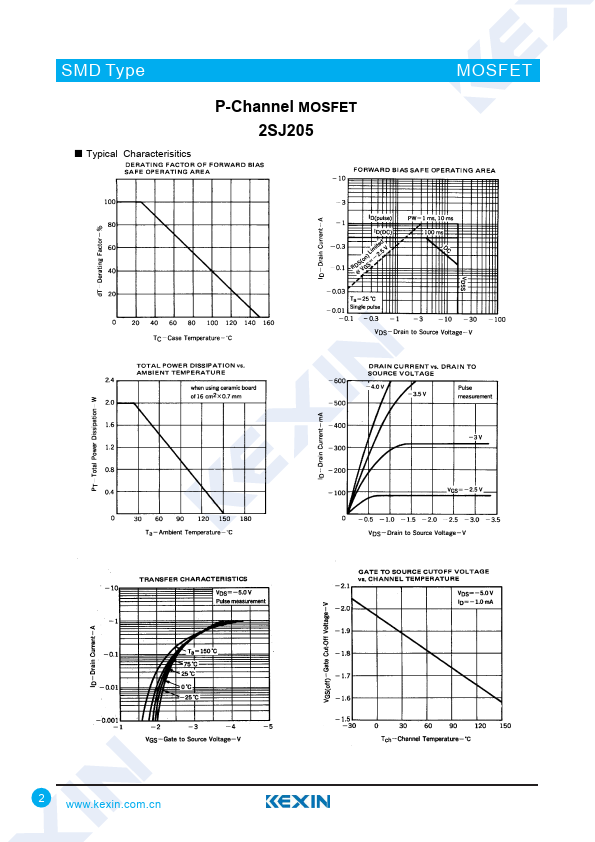

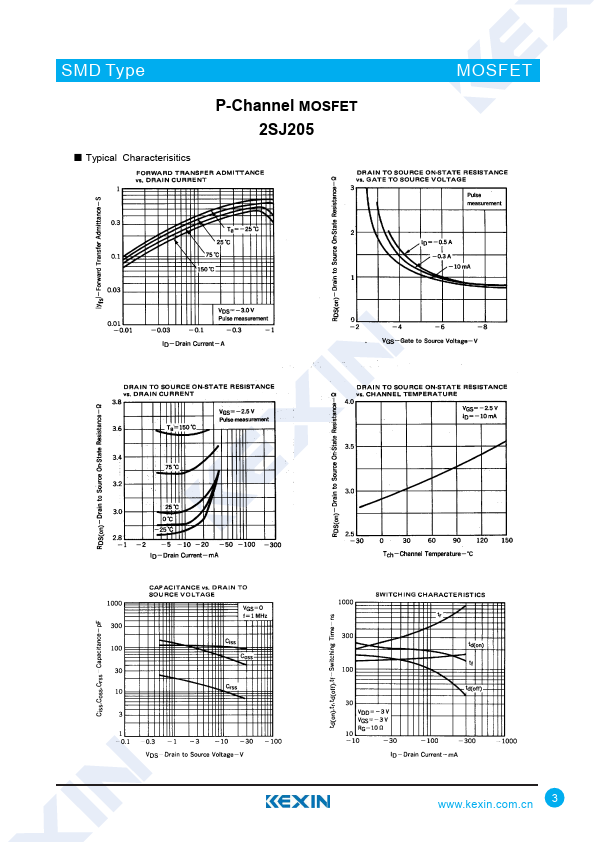

SMD Type P-Channel MOSFET 2SJ205 MOSFET ■ Features ● VDS (V) =-16V ● ID =-0.5 A (VGS =-10V) ● RDS(ON) ＜ 3Ω (VGS =-4V) ● RDS(ON) ＜ 5Ω (VGS =-2.5V) 1.70 0.1 0.42 0.1 0.46 0.1 1.Gate 2.Drain 3.Source ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note.1) Power Dissipation Junction Temperature Tc = 25℃ Junction Storage Temperature Range Symbol VDS VGS ID IDM PD TJ Tstg Rating -16 ±16 -0.5 -1 2 150 -55 to 150 Note.
