2SJ356 - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-60V.
  • ID =-2 A (VGS =-10V).
  • RDS(ON) ＜ 0.5Ω (VGS =-10V).
  • RDS(ON) ＜ 0.95Ω (VGS =-4V) Drain (D) Gate (G) Internal diode Gate protection diode Source (S) 1.70 0.1 0.42 0.1 0.46 0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current （Note.1) Power Dissipation Junction Temperature Junction Storage Temperature Range Symbol Rating Unit VDS -60 V VGS -20,+10 ID -2 A.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SJ356 P-Channel MOSFET NEC
2SJ356 60V P-Channel MOSFET VBsemi
2SJ350 P-Channel MOSFET Hitachi Semiconductor
2SJ350 Silicon P-Channel MOSFET Renesas
2SJ350 100V P-Channel MOSFET VBsemi

Other Datasheets by Kexin Semiconductor

Part Number Description
2SJ3501 P-Channel MOSFET
2SJ3001 P-Channel MOSFET
2SJ3001DS P-Channel Enhancement MOSFET
2SJ302 Mos Field Effect Power Transistor
2SJ302-ZJ P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

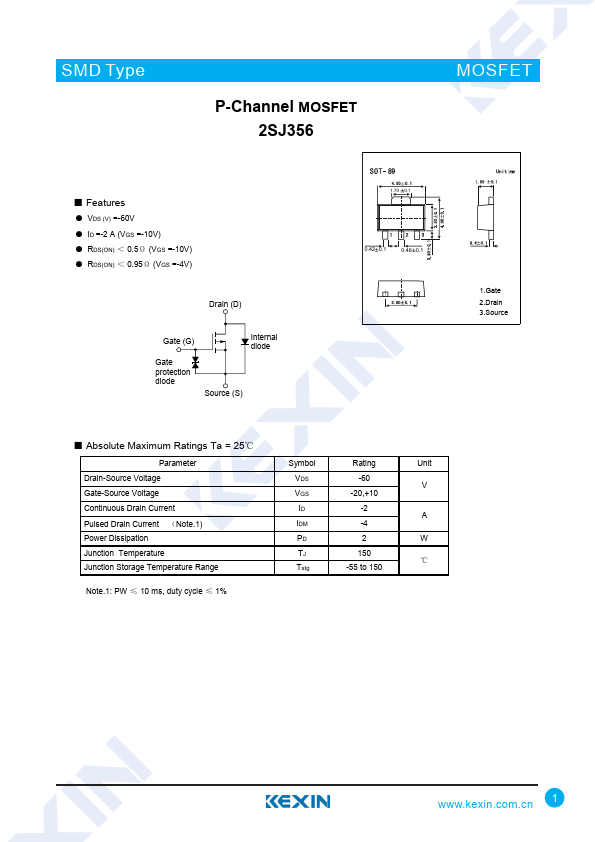

SMD Type P-Channel MOSFET 2SJ356 MOSFET ■ Features ● VDS (V) =-60V ● ID =-2 A (VGS =-10V) ● RDS(ON) ＜ 0.5Ω (VGS =-10V) ● RDS(ON) ＜ 0.95Ω (VGS =-4V) Drain (D) Gate (G) Internal diode Gate protection diode Source (S) 1.70 0.1 0.42 0.1 0.46 0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current （Note.1) Power Dissipation Junction Temperature Junction Storage Temperature Range Symbol Rating Unit VDS -60 V VGS -20,+10 ID -2 A IDM -4 PD 2 W TJ 150 ℃ Tstg -55 to 150 Note.1: PW ≤ 10 ms, duty cycle ≤ 1% 1.Gate 2.Drain 3.Source www.kexin.com.
