2SJ356 datasheet by VBsemi.
| Part number | 2SJ356 |
|---|---|
| Datasheet | 2SJ356-VBsemi.pdf |
| File Size | 196.61 KB |
| Manufacturer | VBsemi |
| Description | 60V P-Channel MOSFET |
|
|

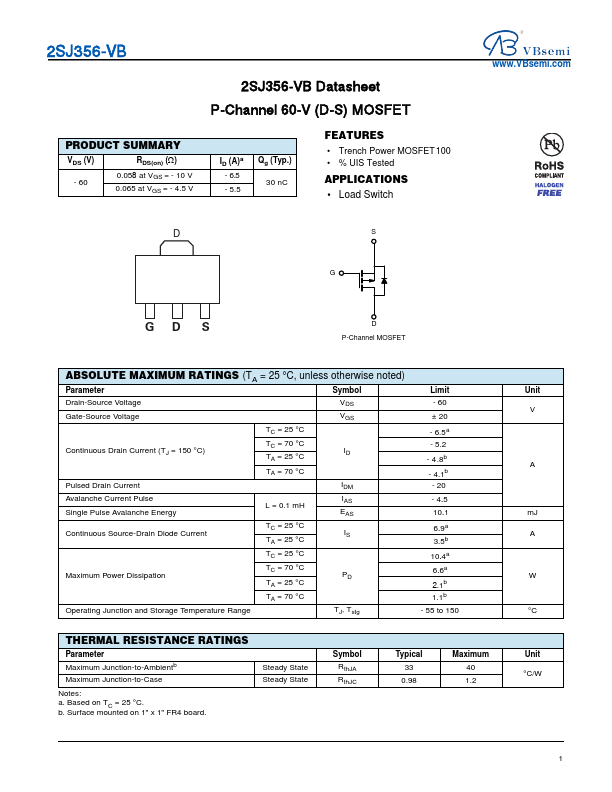

2SJ356-VB 2SJ356-VB Datasheet P-Channel 60-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () - 60 0.058 at VGS = - 10 V 0.065 at VGS = - 4.5 V ID (A)a - 6.5 - 5.5 Qg (Typ.) 30.
| Brand Logo | Part Number | Description | Other Manufacturers |
|---|---|---|---|
 |
2SJ356 | P-Channel MOSFET | NEC |
 |
2SJ356 | P-Channel MOSFET | Kexin |
