2SK3018 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 30V.
  • ID = 0.1 A.
  • RDS(ON) ＜ 8Ω (VGS = 4V).
  • RDS(ON) ＜ 13Ω (VGS = 2.5V) N-Channel MOSFET 2SK3018 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 +0.1 2.4 -0.1 Drain Gate Gate Protection Diode Source 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 0-0.1 +0.1 0.38 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1. Gate 2. Source 3. Drain.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Puls.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3018 2.5V Drive Nch MOS FET Rohm
2SK3018 N-Channel MOSFET JCET
2SK3018 N-CHANNEL MOSFET BLUE ROCKET ELECTRONICS
2SK3018 N-Channel Enhancement Mode Field Effect Transistor MCC
2SK3018 N-Channel Enhancement Mode Field Effect Transistor GME

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3012DSE N-Channel MOSFET
2SK3019 N-Channel MOSFET
2SK3000 N-Channel Enhancement MOSFET
2SK3022 Silicon N-Channel Power F-MOSFET
2SK3024 Silicon N-Channel Power F-MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

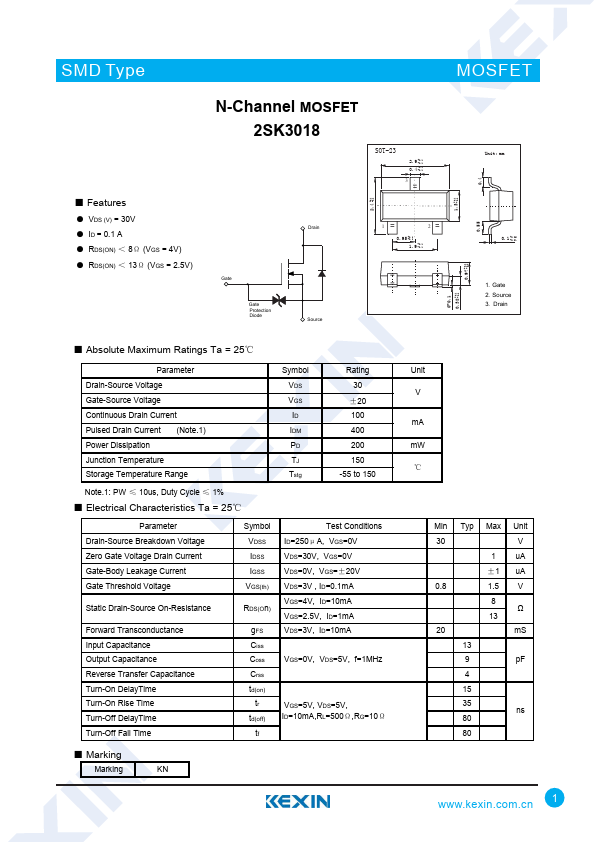

SMD Type MOSFET ■ Features ● VDS (V) = 30V ● ID = 0.1 A ● RDS(ON) ＜ 8Ω (VGS = 4V) ● RDS(ON) ＜ 13Ω (VGS = 2.5V) N-Channel MOSFET 2SK3018 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 +0.1 2.4 -0.1 Drain Gate Gate Protection Diode Source 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 0-0.1 +0.1 0.38 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1. Gate 2. Source 3. Drain ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note.1) Power Dissipation Junction Temperature Storage Temperature Range Symbol VDS VGS ID IDM PD TJ Tstg Rating 30 ±20 100 400 200 150 -55 to 150 Note.
