2SK3050 - Small Switching

Key Features

  • Low on-resistance. Fast switching speed. Wide SOA (safe operating area). Gate-source voltage (VGSS) guaranteed to be 30V. Easily designed drive circuits. Easy to use in parallel. Silicon N-channel MOSFET +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 3.80 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 +0.25 2.65 -0.1 1. Gate 2. Drain 3. Source Absolute Maximum R.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3050 Small switching Transistors Rohm
2SK3050 N-Channel MOSFET Transistor TRR
2SK3051 N-Channel MOSFET Toshiba Semiconductor
2SK3053 N-Channel MOSFET NEC
2SK3054 N-Channel MOSFET NEC

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3050DFN N-Channel MOSFET
2SK3000 N-Channel Enhancement MOSFET
2SK3002DS N-Channel Enhancement MOSFET
2SK3012DSE N-Channel MOSFET
2SK3018 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

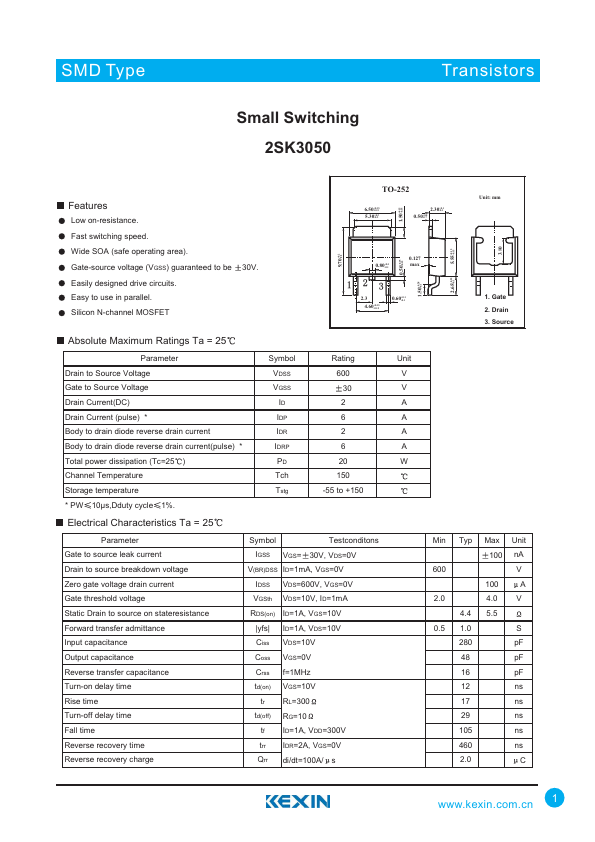

SMD Type TransistIoCrs Small Switching 2SK3050 Features Low on-resistance. Fast switching speed. Wide SOA (safe operating area). Gate-source voltage (VGSS) guaranteed to be 30V. Easily designed drive circuits. Easy to use in parallel. Silicon N-channel MOSFET +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 3.80 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 +0.25 2.65 -0.1 1. Gate 2. Drain 3.
