2SK3050 - N-Channel MOSFET Transistor

General Description

and solenoid drive.

Key Features

Drain Current : ID=2A@ TC=25℃.
Drain Source Voltage : VDSS= 600V(Min).
Static Drain-Source On-Resistance : RDS(on) =5.5Ω(Max)@ VGS= 10V.
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.

2SK3050 n-channel mosfet transistor by TRR - Datasheet Preview

Datasheet Details

Part number	2SK3050
Manufacturer	TRR
File Size	460.69 KB
Description	N-Channel MOSFET Transistor
Datasheet	2SK3050 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2SK3050	Small switching Transistors	Rohm
2SK3050	Small Switching	Kexin
2SK3050DFN	N-Channel MOSFET	Kexin
2SK3051	N-Channel MOSFET	Toshiba Semiconductor
2SK3053	N-Channel MOSFET	NEC

Other Datasheets by TRR

Part Number	Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

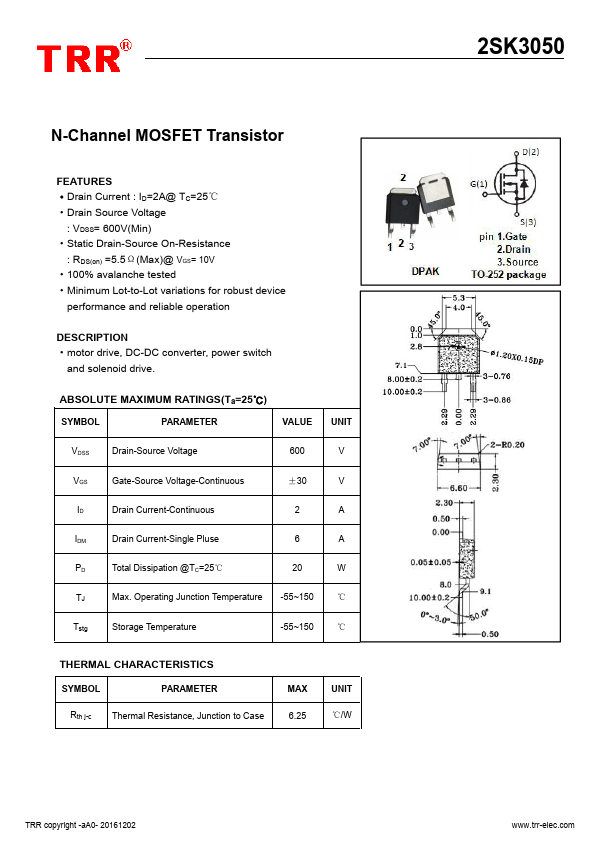

N-Channel MOSFET Transistor FEATURES ·Drain Current : ID=2A@ TC=25℃ ·Drain Source Voltage : VDSS= 600V(Min) ·Static Drain-Source On-Resistance : RDS(on) =5.5Ω(Max)@ VGS= 10V ·100% avalanche tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operation DESCRIPTION ·motor drive, DC-DC converter, power switch and solenoid drive. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 600 V VGS Gate-Source Voltage-Continuous ±30 V ID Drain Current-Continuous 2 A IDM Drain Current-Single Pluse 6 A PD Total Dissipation @TC=25℃ 20 W TJ Max.
