2SK3434-ZJ - N-Channel MOSFET

Key Features

  • s.
  • VDS S = 60V.
  • ID = 48 A (VGS = 10V).
  • RDS(ON) ＜ 20mΩ (VGS = 10V).
  • RDS(ON) ＜ 31mΩ (VGS = 4V).
  • Low Ciss: Ciss = 2100 pF TYP. Drain Gate Body Diode Gate Protection Diode Source.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note.1) Single Avalanche Current (Note.2) Power Dissipation Single Avalanche Energy Tc = 25℃ Ta = 25℃ (Note.2) Thermal Resistance. Junction- to-Amb.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3434-Z N-Channel MOSFET Transistor Inchange Semiconductor
2SK3434-S N-Channel MOSFET Transistor Inchange Semiconductor
2SK3434 N-Channel MOSFET Transistor Inchange Semiconductor
2SK3434 N-Channel MOSFET NEC
2SK343 N-Channel MOSFET Hitachi

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3434 MOS Field Effect Transistor
2SK3430 MOS Field Effect Transistor
2SK3430-ZJ N-Channel MOSFET
2SK3431 MOS Field Effect Transistor
2SK3432 MOS Field Effect Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

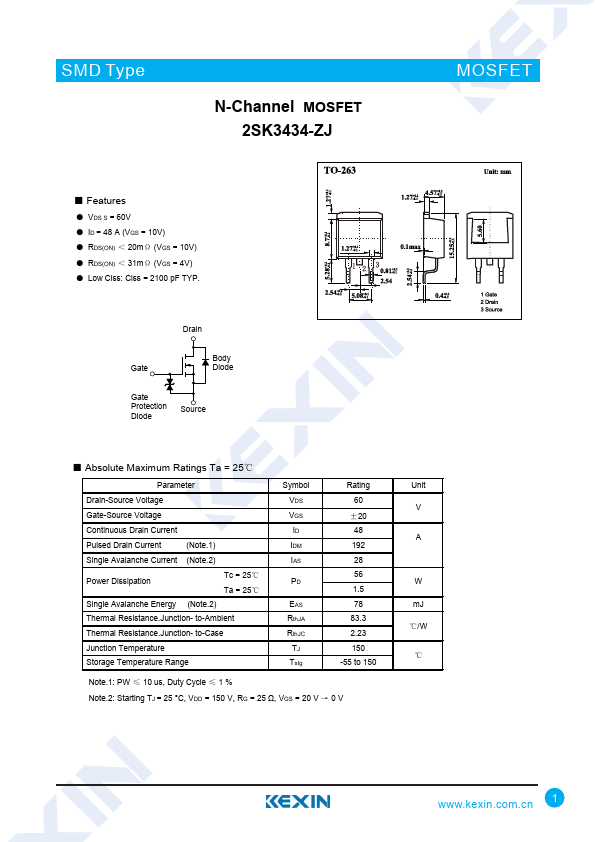

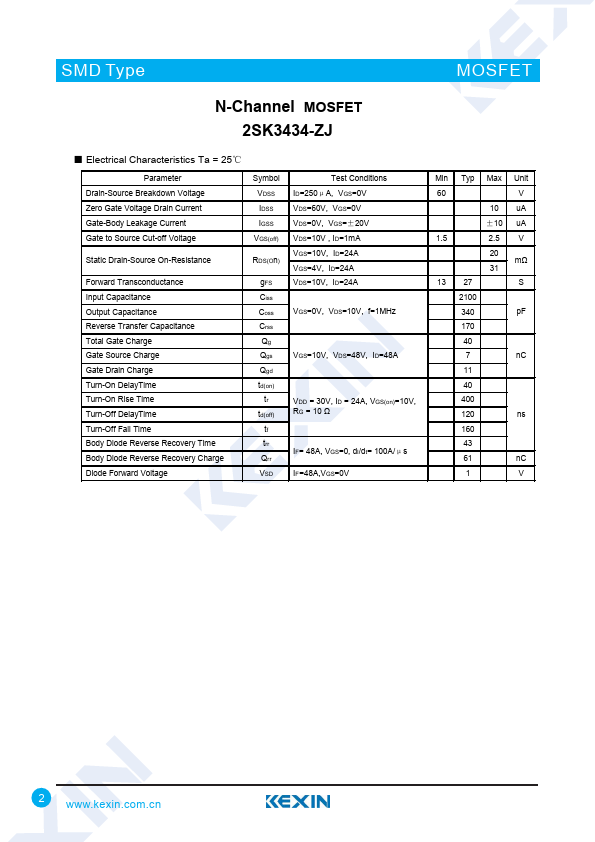

SMD Type N-Channel MOSFET 2SK3434-ZJ MOSFET ■ Features ● VDS S = 60V ● ID = 48 A (VGS = 10V) ● RDS(ON) ＜ 20mΩ (VGS = 10V) ● RDS(ON) ＜ 31mΩ (VGS = 4V) ● Low Ciss: Ciss = 2100 pF TYP. Drain Gate Body Diode Gate Protection Diode Source ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note.1) Single Avalanche Current (Note.2) Power Dissipation Single Avalanche Energy Tc = 25℃ Ta = 25℃ (Note.2) Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Case Junction Temperature Storage Temperature Range Symbol VDS VGS ID IDM IAS PD EAS RthJA RthJC TJ Tstg Rating 60 ±20 48 192 28 56 1.5 78 83.3 2.23 150 -55 to 150 Note.1: PW ≤ 10 us, Duty Cycle ≤ 1 % Note.
