2SK3712 - MOS Field Effect Transistor

Key Features

  • High voltage: VDSS = 250 V Gate voltage rating: 30 V Low on-state resistance RDS(on) = 0.58 MAX. (VGS = 10 V, ID = 4.5 A) Low Ciss: Ciss = 450 pF TYP. (VDS = 10 V, ID = 0 A) Built-in gate protection diode +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 3.80 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 +0.25 2.65 -0.1 1 Gate 2 Drain 3 Source Absolute Maximum Rat.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3712 N-Channel MOSFET Transistor Inchange Semiconductor
2SK3712 SWITCHING N-CHANNEL POWER MOSFET NEC
2SK3712-Z N-Channel MOSFET Transistor Inchange Semiconductor
2SK371 N-Channel MOSFET Toshiba Semiconductor
2SK3710 MOSFET Sanken

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3713 MOS Field Effect Transistor
2SK3716 MOS Field Effect Transistor
2SK3723 N-Channel MOSFET
2SK3731 N-channel enhancement mode MOSFET
2SK3740 MOS Field Effect Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

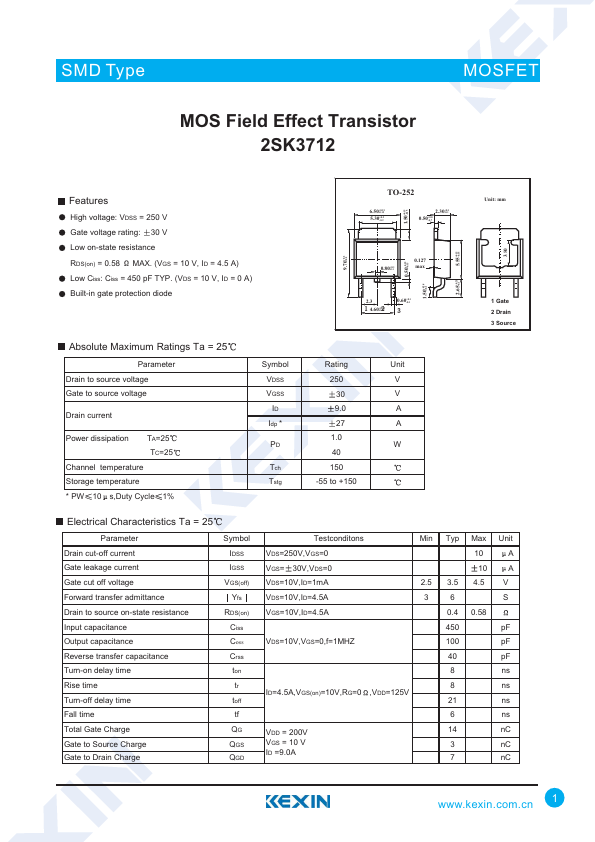

SMD Type MOSFICET MOS Field Effect Transistor 2SK3712 Features High voltage: VDSS = 250 V Gate voltage rating: 30 V Low on-state resistance RDS(on) = 0.58 MAX. (VGS = 10 V, ID = 4.5 A) Low Ciss: Ciss = 450 pF TYP. (VDS = 10 V, ID = 0 A) Built-in gate protection diode +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 3.80 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 +0.25 2.65 -0.
