2SK3813 - MOS Field Effect Transistor

Key Features

  • Low On-state resistance RDS(on)1 = 5.3 mÙ MAX. (VGS = 10 V, ID = 30 A) RDS(on)2 = 7.1 mÙ MAX. (VGS = 4.5 V, ID = 30 A) Low C iss: C iss = 5500 pF TYP. +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 3.80 +0.25 2.65 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current Power dissipation TA=25 TC=25 C.

📥 Download Datasheet

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

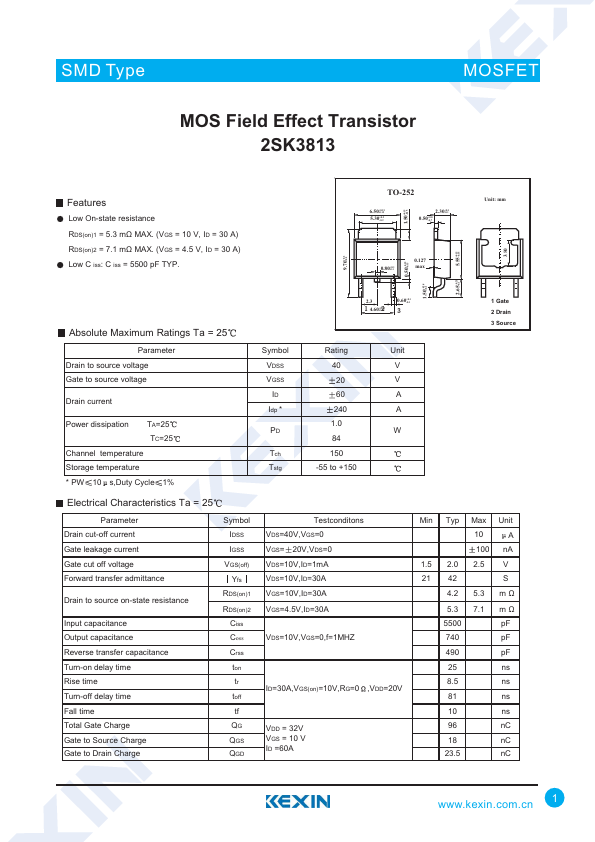

SMD Type MOSFICET MOS Field Effect Transistor 2SK3813 Features Low On-state resistance RDS(on)1 = 5.3 mÙ MAX. (VGS = 10 V, ID = 30 A) RDS(on)2 = 7.1 mÙ MAX. (VGS = 4.5 V, ID = 30 A) Low C iss: C iss = 5500 pF TYP. +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 3.80 +0.25 2.65 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current Power dissipation TA=25 TC=25 Channel temperature Storage temperature * PW 10 s,Duty Cycle 1% 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 Symbol Rating Unit VDSS 40 V VGSS 20 V ID 60 A Idp * 240 A 1.
