AO4420 Datasheet N-channel MOSFET

Manufacturer: Kexin Semiconductor

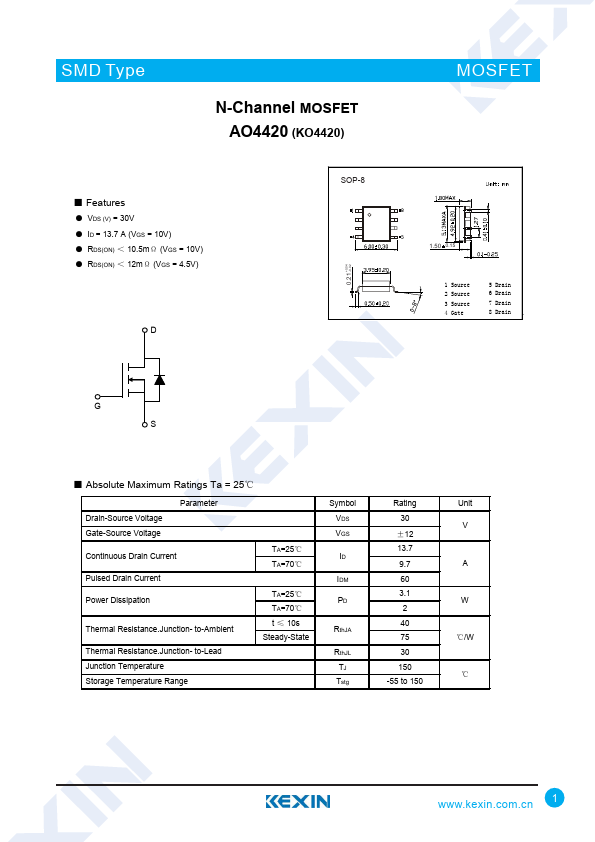

Overview: SMD Type N-Channel MOSFET AO4420 (KO4420) ■.

Key Features

  • s.
  • VDS (V) = 30V.
  • ID = 13.7 A (VGS = 10V).
  • RDS(ON) ＜ 10.5mΩ (VGS = 10V).
  • RDS(ON) ＜ 12mΩ (VGS = 4.5V) SOP-8 +0.04 0.21 -0.02 D MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance. Junction- to-Ambient Thermal Resistance. Junction- to-Lead Junction Temperature.
