AO4421 Datasheet P-channel MOSFET

Manufacturer: Kexin Semiconductor

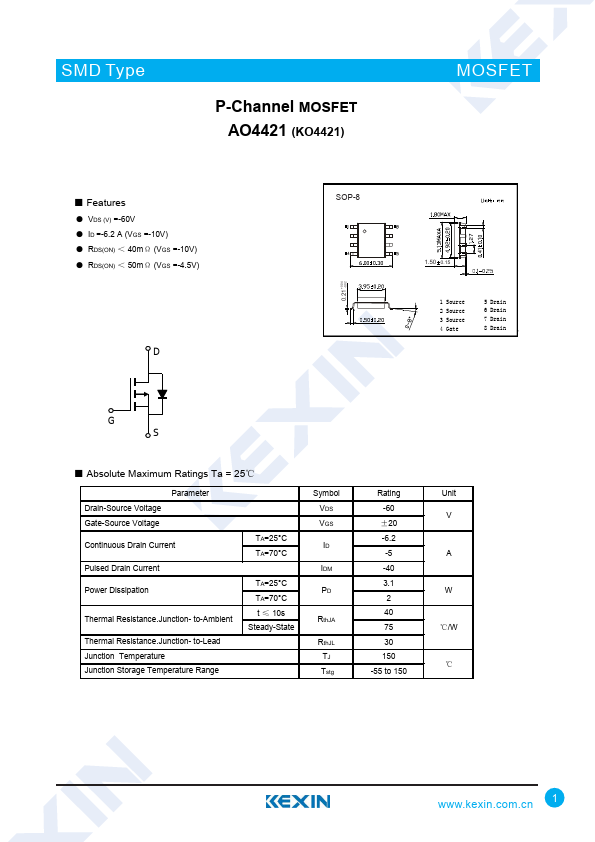

Overview: SMD Type P-Channel MOSFET AO4421 (KO4421) ■.

Key Features

  • s.
  • VDS (V) =-60V.
  • ID =-6.2 A (VGS =-10V).
  • RDS(ON) ＜ 40mΩ (VGS =-10V).
  • RDS(ON) ＜ 50mΩ (VGS =-4.5V) SOP-8 +0.04 0.21 -0.02 D MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance. Junction- to-Ambient Thermal Resistance. Junction- to-Lead Junction Temperature Ju.
