AO4423 - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-30V.
  • ID =-15 A (VGS =-20V).
  • RDS(ON) ＜ 7mΩ (VGS =-20V).
  • RDS(ON) ＜ 8.5mΩ (VGS =-10V).
  • RDS(ON) ＜ 12 mΩ (VGS =- 6 V).
  • ESD Rating: 3000V HBM D G S +0.04 0.21 -0.02 SOP-8 MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance. Junction- to-Ambient T.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4423 P-Channel MOSFET Freescale
AO4423 30V P-Channel MOSFET Alpha & Omega Semiconductors
AO4423 P-Channel MOSFET VBsemi
AO4423L 30V P-Channel MOSFET Alpha & Omega Semiconductors
AO4420 N-Channel MOSFET Freescale

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4420 N-Channel MOSFET
AO4421 P-Channel MOSFET
AO4425 P-Channel MOSFET
AO4427 P-Channel MOSFET
AO4402 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

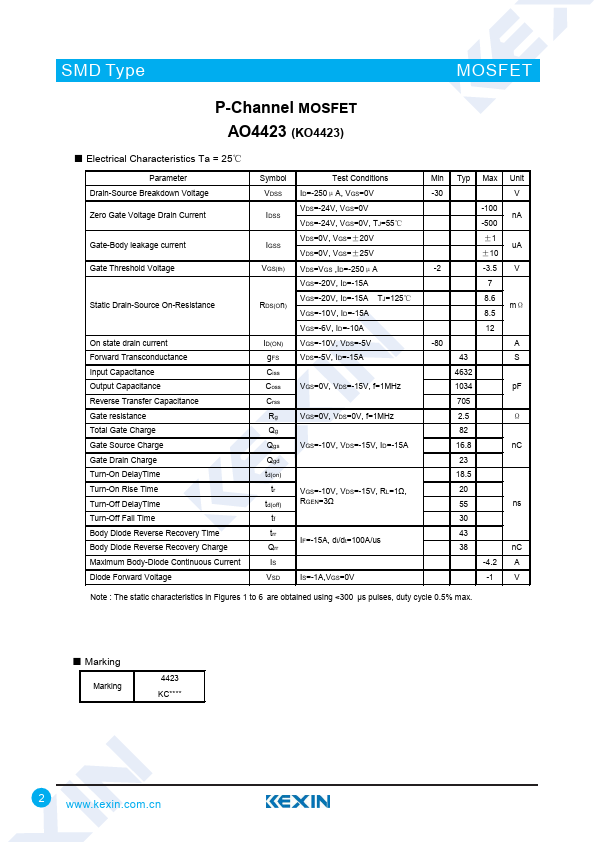

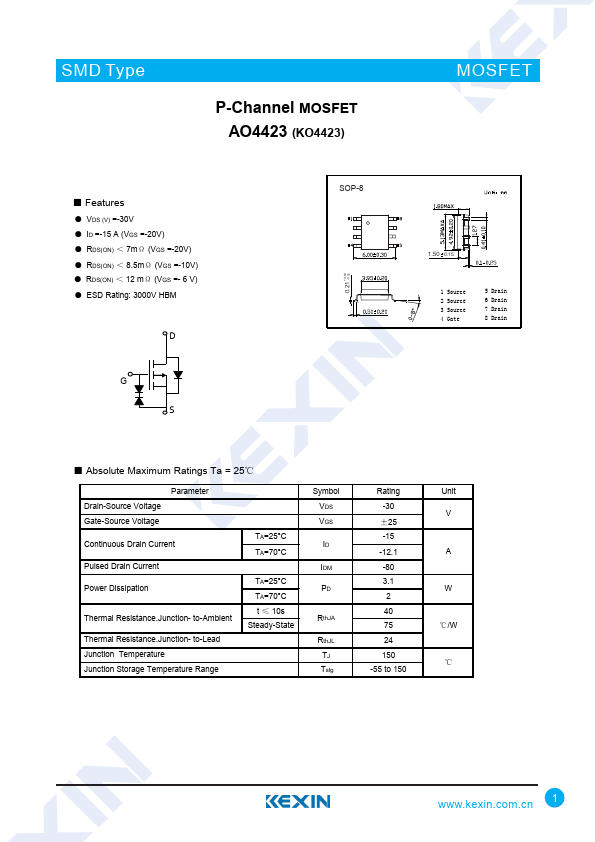

SMD Type P-Channel MOSFET AO4423 (KO4423) ■ Features ● VDS (V) =-30V ● ID =-15 A (VGS =-20V) ● RDS(ON) ＜ 7mΩ (VGS =-20V) ● RDS(ON) ＜ 8.5mΩ (VGS =-10V) ● RDS(ON) ＜ 12 mΩ (VGS =- 6 V) ● ESD Rating: 3000V HBM D G S +0.04 0.21 -0.02 SOP-8 MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Junction Storage Temperature Range TA=25°C TA=70°C TA=25°C TA=70°C t ≤ 10s Steady-State Symbol VDS VGS ID IDM PD RthJA RthJL TJ Tstg Rating -30 ±25 -15 -12.1 -80 3.1 2 40 75 24 150 -55 to 150 Unit V A W ℃/W ℃ www.
