AO4771 - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) = -30V.
  • ID = -4 A (VGS = -10V).
  • RDS(ON) ＜ 68mΩ (VGS = -10V).
  • RDS(ON) ＜ 105mΩ (VGS = -4.5V).
  • VDS (V) = 30V, IF = 4A, VF.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4771 30V Dual P-Channel MOSFET VBsemi
AO4771L 30V P-Channel MOSFET Alpha & Omega Semiconductors
AO4700 N-Channel Enhancement Mode Field Effect Transistor Alpha & Omega Semiconductors
AO4700 N-Channel MOSFET Alpha & Omega Semiconductors
AO4701 P-Channel Enhancement Mode Field Effect Transistor Alpha & Omega Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4702 N-Channel MOSFET
AO4704 N-Channel MOSFET
AO4705 P-Channel MOSFET
AO4706 N-Channel MOSFET
AO4710 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

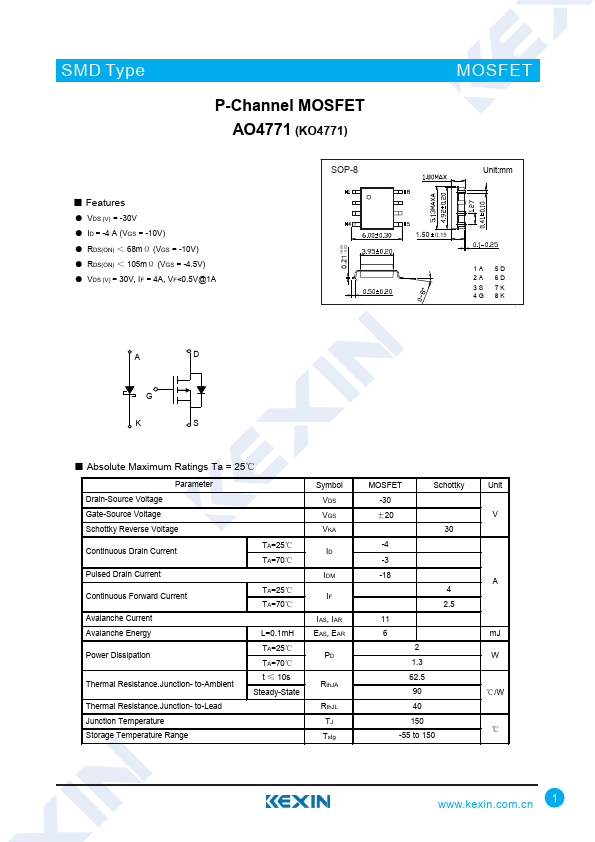

SMD Type P-Channel MOSFET AO4771 (KO4771) ■ Features ● VDS (V) = -30V ● ID = -4 A (VGS = -10V) ● RDS(ON) ＜ 68mΩ (VGS = -10V) ● RDS(ON) ＜ 105mΩ (VGS = -4.5V) ● VDS (V) = 30V, IF = 4A, VF<0.5V@1A +0.04 0.21 -0.02 SOP-8 MOSFET Unit:mm 1.50 0.15 1A 5D 2A 6D 3S 7K 4G 8K A D G K S ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Schottky Reverse Voltage Continuous Drain Current Pulsed Drain Current TA=25℃ TA=70℃ Continuous Forward Current Avalanche Current TA=25℃ TA=70℃ Avalanche Energy Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range L=0.
