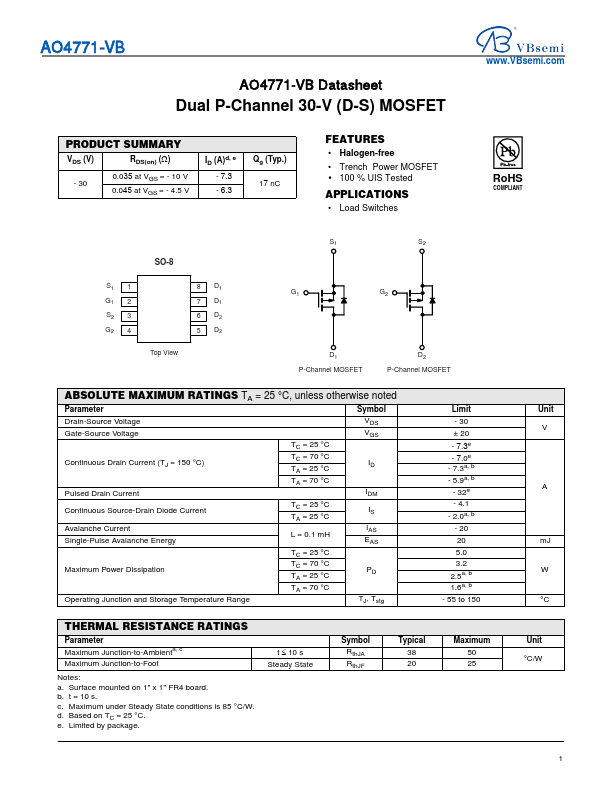

AO4771
AO4771 is 30V Dual P-Channel MOSFET manufactured by VBsemi.
FEATURES
- Halogen-free
- Trench Power MOSFET
- 100 % UIS Tested
APPLICATIONS
- Load Switches
.VBsemi.
Ro HS
PLIANT
S1 1 G1 2 S2 3 G2 4
SO-8 Top View
8 D1 7 D1 6 D2 5 D2
S1
S2
G1
G2
D1 P-Channel MOSFET
D2 P-Channel MOSFET
ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted
Parameter
Symbol
Drain-Source Voltage
Gate-Source Voltage
TC = 25 °C
Continuous Drain Current (TJ = 150 °C)
TC = 70 °C TA = 25 °C
Pulsed Drain Current
TA = 70 °C IDM
Continuous Source-Drain Diode Current
Avalanche Current Single-Pulse Avalanche Energy
TC = 25 °C TA = 25 °C
L = 0.1 m H
IAS EAS
TC = 25 °C
Maximum Power Dissipation
TC = 70 °C TA = 25...
