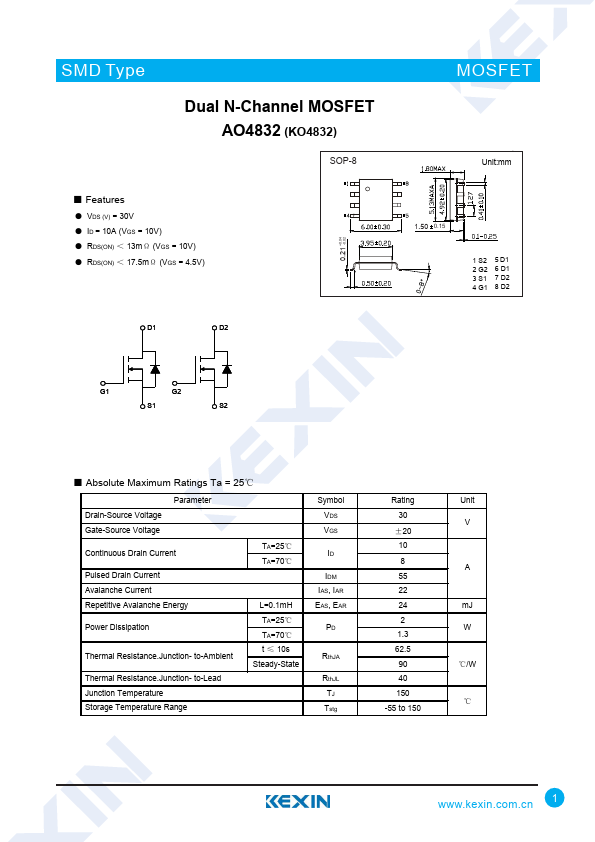

AO4832
AO4832 is Dual N-Channel MOSFET manufactured by Kexin Semiconductor.
Features
- VDS (V) = 30V
- ID = 10A (VGS = 10V)
- RDS(ON) ＜ 13mΩ (VGS = 10V)
- RDS(ON) ＜ 17.5mΩ (VGS = 4.5V)
+0.04 0.21 -0.02
D1
D2
MOSFET
Unit:mm
1.50 0.15
1 S2 2 G2 3 S1 4 G1
5 D1 6 D1 7 D2 8 D2
G1
G2
S1
S2
- Absolute Maximum Ratings Ta = 25℃
Drain-Source Voltage Gate-Source Voltage
Parameter
Continuous Drain Current
Pulsed Drain Current Avalanche Current Repetitive Avalanche Energy Power Dissipation
Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range
TA=25℃ TA=70℃
L=0.1m H TA=25℃ TA=70℃ t ≤ 10s Steady-State
Symbol VDS VGS
IDM IAS, IAR EAS, EAR
Rth JA
Rth JL TJ Tstg
Rating 30
±20 10 8 55 22 24 2 1.3 62.5 90 40 150
-55 to 150
Unit V
A m J W ℃/W ℃
.kexin..cn 1
SMD Type
MOSFET
Dual N-Channel...
