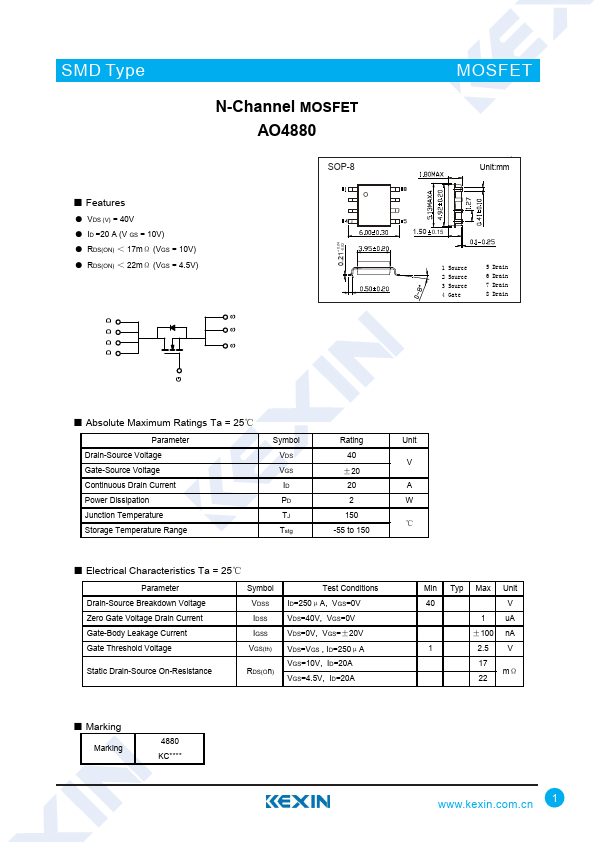

AO4880
AO4880 is N-Channel MOSFET manufactured by Kexin Semiconductor.
Features
- VDS (V) = 40V
- ID =20 A (V GS = 10V)
- RDS(ON) ＜ 17mΩ (VGS = 10V)
- RDS(ON) ＜ 22mΩ (VGS = 4.5V)
MOSFET
Unit:mm
1.50 0.15
1 Source 2 Source 3 Source 4 Gate
5 Drain 6 Drain 7 Drain 8 Drain
DDD D G
S SS +0.04 0.21
-0.02
- Absolute Maximum Ratings Ta = 25℃
Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Power Dissipation Junction Temperature Storage Temperature Range
Symbol
Rating
Unit
±20
℃
Tstg
-55 to 150
- Electrical Characteristics Ta = 25℃
Parameter Drain-Source Breakdown Voltage Zero Gate Voltage Drain Current Gate-Body Leakage Current Gate Threshold Voltage
Symbol VDSS IDSS IGSS VGS(th)
Static Drain-Source On-Resistance
RDS(On)
Test Conditions ID=250μA, VGS=0V VDS=40V, VGS=0V VDS=0V, VGS=±20V VDS=VGS , ID=250μA VGS=10V, ID=20A VGS=4.5V, ID=20A
Min Typ Max Unit
1 u A
±100 n A
2.5 V
17...
