AO4900 - Dual N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 30V.
  • ID = 6.9 A (VGS = 10V).
  • RDS(ON) ＜ 27mΩ (VGS = 10V).
  • RDS(ON) ＜ 32mΩ (VGS = 4.5V).
  • RDS(ON) ＜ 50mΩ (VGS = 2.5V).
  • VDS (V) = 30V, IF = 3A, VF.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4900 Dual N-Channel MOSFET VBsemi
AO4900 Dual N-Channel Enhancement Mode Field Effect Transistor Alpha & Omega Semiconductors
AO4900A Dual N-Channel Enhancement Mode Field Effect Transistor Alpha & Omega Semiconductors
AO4902 Dual N-Channel Enhancement Mode Field Effect Transistor Alpha & Omega Semiconductors
AO4904 Dual N-Channel Enhancement Mode Field Effect Transistor Alpha & Omega Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4906 Dual N-Channel MOSFET
AO4912 Dual N-Channel MOSFET
AO4914 Dual N-Channel MOSFET
AO4918 Dual N-Channel MOSFET
AO4924 Dual N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

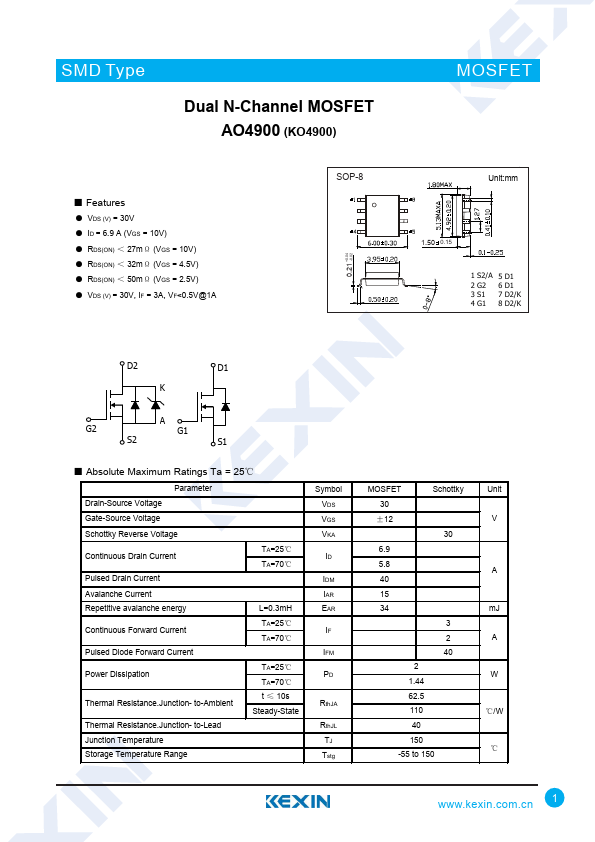

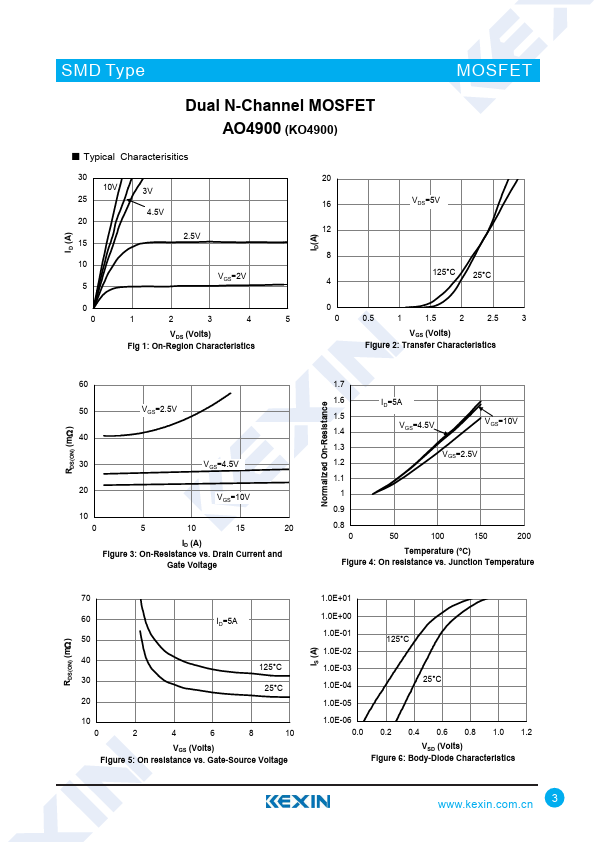

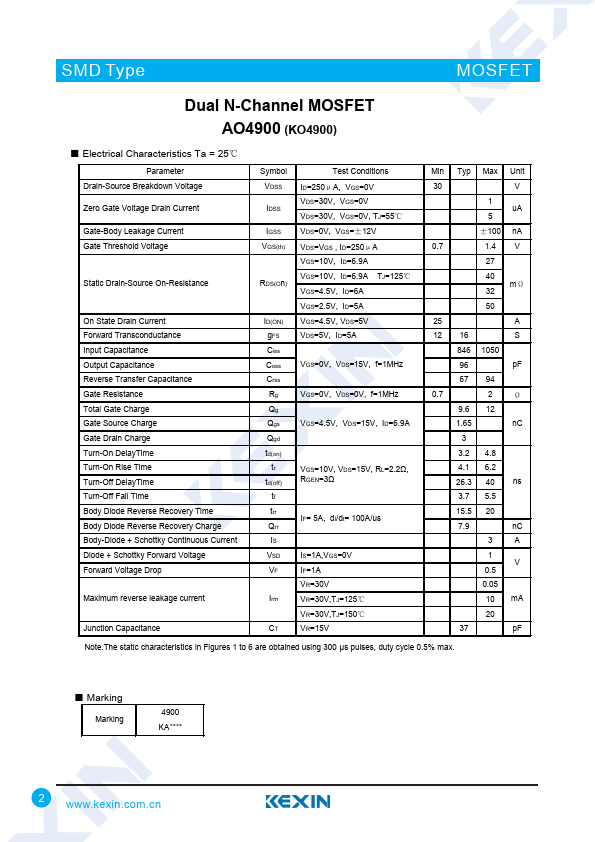

SMD Type Dual N-Channel MOSFET AO4900 (KO4900) ■ Features ● VDS (V) = 30V ● ID = 6.9 A (VGS = 10V) ● RDS(ON) ＜ 27mΩ (VGS = 10V) ● RDS(ON) ＜ 32mΩ (VGS = 4.5V) ● RDS(ON) ＜ 50mΩ (VGS = 2.5V) ● VDS (V) = 30V, IF = 3A, VF<0.5V@1A +0.04 0.21 -0.02 SOP-8 MOSFET Unit:mm 1.50 0.15 1 S2/A 5 D1 2 G2 6 D1 3 S1 7 D2/K 4 G1 8 D2/K D2 D1 K A G2 G1 S2 S1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Schottky Reverse Voltage Continuous Drain Current Pulsed Drain Current TA=25℃ TA=70℃ Avalanche Current Repetitive avalanche energy Continuous Forward Current Pulsed Diode Forward Current L=0.3mH TA=25℃ TA=70℃ Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.
