AO6810 - Dual N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 30V.
  • ID =3.5 A (VGS = 10V).
  • RDS(ON) ＜ 50mΩ (VGS = 10V).

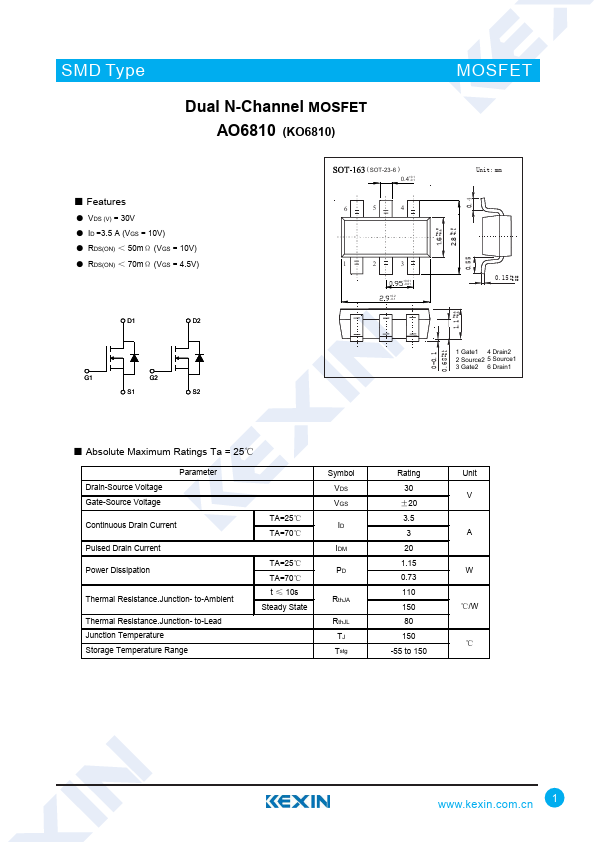

  • RDS(ON) ＜ 70mΩ (VGS = 4.5V) D1 D2 ( SOT-23-6 ) 0.4+0.1 -0.1 6 5 4 1 2 3 +0.01 -0.01 +0.2 -0.1 G1 G2 S1 S2 0-0.1 +0.1 0.68 -0.1 +0.2 1.6 -0.1 +0.2 2.8 -0.1 +0.1 1.1 -0.1 0.55 0.4 MOSFET Unit: mm 0.15 +0.02 -0.02 1 Gate1 4 Drain2 2 Source2 5 Source1 3 Gate2 6 Drain1.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulse.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO6810 20V Dual N-Channel MOSFET VBsemi
AO6810 Dual N-Channel MOSFET Alpha & Omega Semiconductors
AO6800 30V Dual N-Channel MOSFET Alpha & Omega Semiconductors
AO6800 Dual N-Channel MOSFET VBsemi
AO6801 Dual P-Channel MOSFET Alpha & Omega Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
AO6800 Dual N-Channel MOSFET
AO6800-HF Dual N-Channel MOSFET
AO6801 Dual P-Channel MOSFET
AO6801A Dual P-Channel MOSFET
AO6801E Dual P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

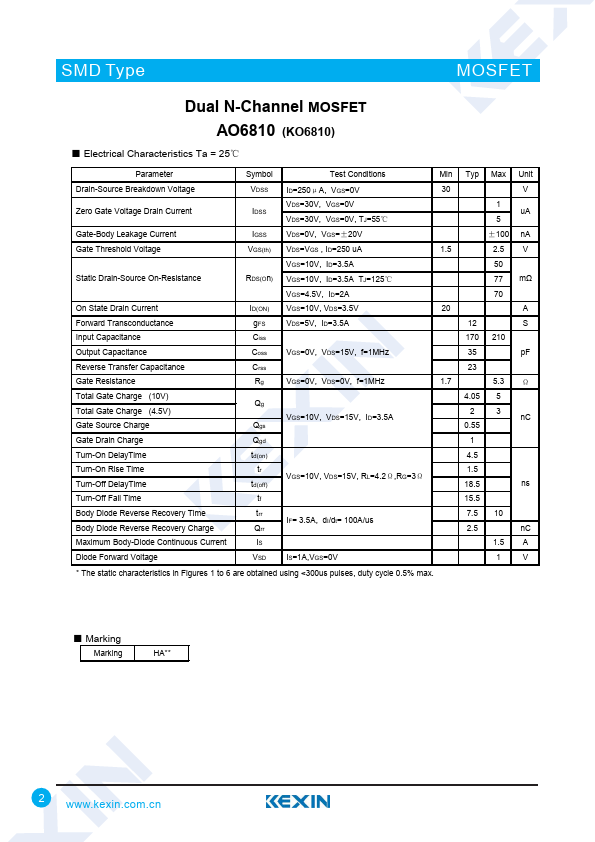

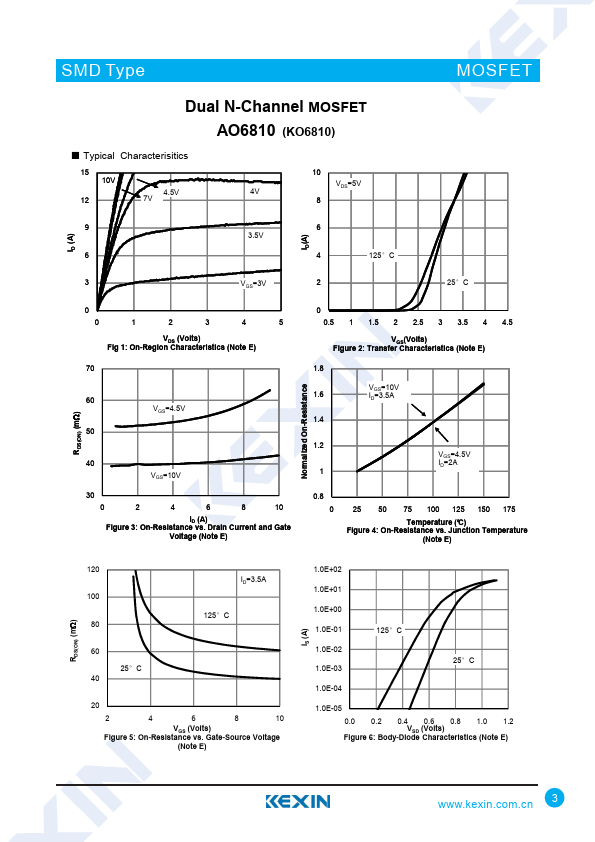

SMD Type Dual N-Channel MOSFET AO6810 (KO6810) ■ Features ● VDS (V) = 30V ● ID =3.5 A (VGS = 10V) ● RDS(ON) ＜ 50mΩ (VGS = 10V) ● RDS(ON) ＜ 70mΩ (VGS = 4.5V) D1 D2 ( SOT-23-6 ) 0.4+0.1 -0.1 6 5 4 1 2 3 +0.01 -0.01 +0.2 -0.1 G1 G2 S1 S2 0-0.1 +0.1 0.68 -0.1 +0.2 1.6 -0.1 +0.2 2.8 -0.1 +0.1 1.1 -0.1 0.55 0.4 MOSFET Unit: mm 0.15 +0.02 -0.02 1 Gate1 4 Drain2 2 Source2 5 Source1 3 Gate2 6 Drain1 ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.
