AP2322GN - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 20V.
  • ID = 2.5 A.
  • RDS(ON) ＜ 90mΩ (VGS = 4.5V).
  • RDS(ON) ＜ 120mΩ (VGS = 2.5V).
  • RDS(ON) ＜ 150mΩ (VGS = 1.8V) D +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.68 -0.1 G S.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Pow.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AP2322GN N-CHANNEL ENHANCEMENT MODE POWER MOSFET Advanced Power Electronics
AP2322GN-HF N-CHANNEL ENHANCEMENT MODE POWER MOSFET Advanced Power Electronics
AP2322GN-HF-3 N-channel Enhancement mode Power MOSFET Advanced Power Electronics
AP2322MI 20V N-Channel Enhancement Mode MOSFET APM
AP2320GN N-CHANNEL ENHANCEMENT MODE POWER MOSFET Advanced Power Electronics

Other Datasheets by Kexin Semiconductor

Part Number Description
AP2310GN N-Channel Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

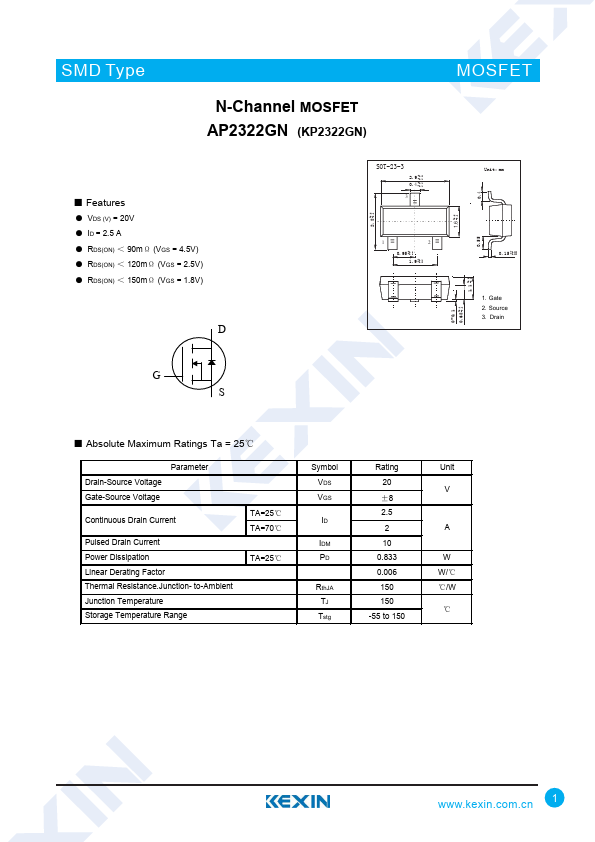

SMD Type N-Channel MOSFET AP2322GN (KP2322GN) MOSFET ■ Features ● VDS (V) = 20V ● ID = 2.5 A ● RDS(ON) ＜ 90mΩ (VGS = 4.5V) ● RDS(ON) ＜ 120mΩ (VGS = 2.5V) ● RDS(ON) ＜ 150mΩ (VGS = 1.8V) D +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.68 -0.1 G S ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Power Dissipation Linear Derating Factor Thermal Resistance.Junction- to-Ambient Junction Temperature Storage Temperature Range TA=25℃ TA=70℃ TA=25℃ Symbol VDS VGS ID IDM PD RthJA TJ Tstg Rating 20 ±8 2.5 2 10 0.833 0.
