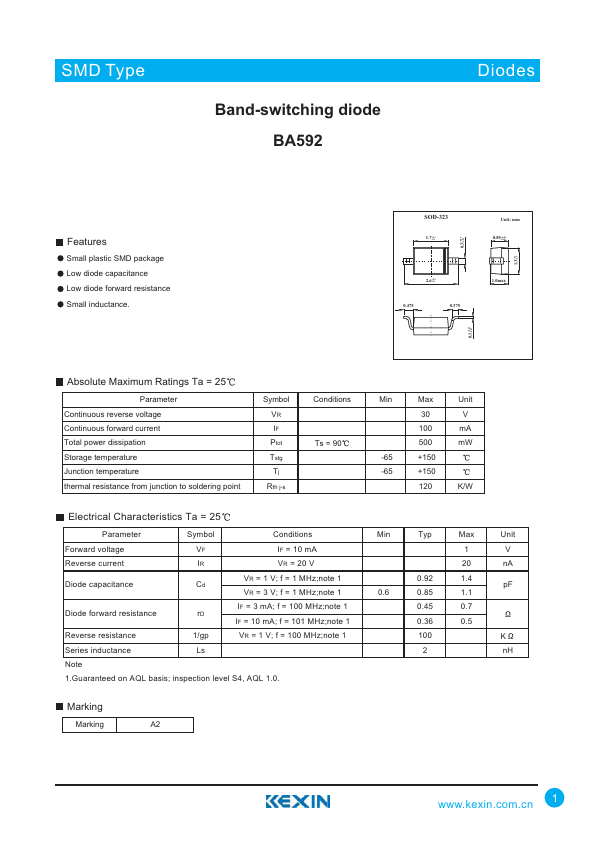

BA592 Datasheet PDF

FEATURES

Small plastic SMD package Low diode capacitance Low diode forward resistance Small inductance. SOD-323 1.7+0.1 -0.1 Unit: mm 0.85+0.05 -0.05 +0.05 0.3 -0.05 +0.1 1.3 -0.1 2.6+0.1 -0.1 0.475 0.375 1.0max +0.05 0.1 -0.02

ABSOLUTE MAXIMUM RATINGS

Ta = 25 Parameter Continuous reverse voltage Continuous forward current Total power dissipation Storage temperature Junction temperature thermal resistance from junction to soldering point Symbol VR IF Ptot Tstg Tj Rth j-s Conditions Ts = 90 Min Max Unit 30 V 100 mA 500 mW -65 +150 -65 +150 120 K/W

ELECTRICAL CHARACTERISTICS

Ta = 25 Parameter Symbol Conditions Min Typ Max Unit Forward voltage VF IF = 10 mA 1 V Reverse current IR VR = 20 V 20 nA Diode capacitance VR = 1 V; f = 1 MHz;note 1 0.92 1.4 Cd pF VR = 3 V; f = 1 MHz;note 1 0.6 0.85 1.1 Diode forward resistance IF = 3 mA; f = 100 MHz;note 1 rD IF = 10 mA; f = 101 MHz;note 1 0.45 0.7 0.36 0.5 Reverse resistance 1/gp VR = 1 V; f = 100 MHz;note 1 100 K Series inductance Ls 2 nH Note 1.Guaranteed on AQL basis; inspection level S4, AQL 1.0.
