BAS31
BAS31 is General Purpose Controlled Avalanche Diodes manufactured by Kexin Semiconductor.
- Part of the BAS29 comparator family.
- Part of the BAS29 comparator family.

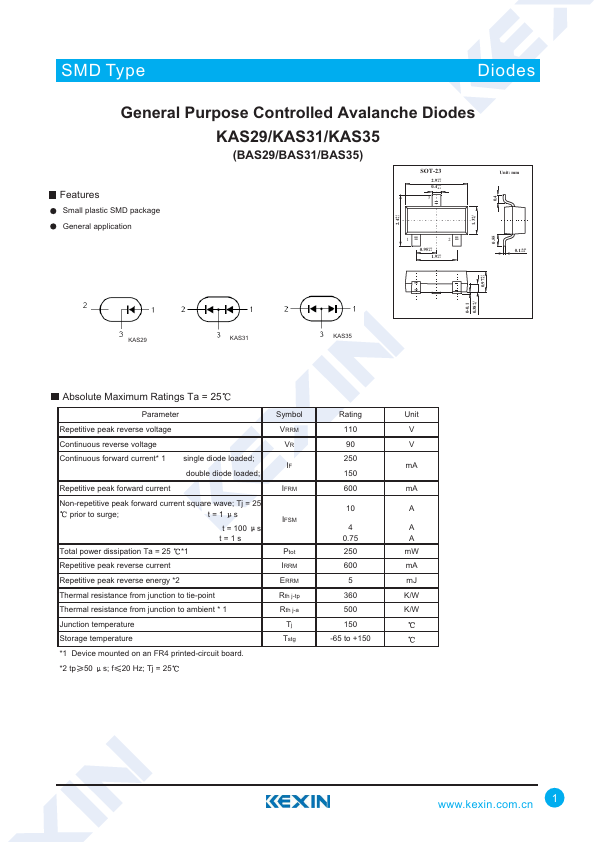

Features
Small plastic SMD package General application
KAS29/KAS31/KAS35
(BAS29/BAS31/BAS35)
SOT-23
2.9+0.1 -0.1
0.4+0.1 -0.1
+0.1 2.4 -0.1
0.95+0.1 -0.1 1.9+0.1 -0.1
+0.1 1.3 -0.1
Unit: mm 0.1+0.05
-0.01
+0.1 0.97 -0.1
KAS29
KAS31
KAS35
0-0.1 +0.1 0.38
-0.1
1.Base 2.Emitter 3.collector
Absolute Maximum Ratings Ta = 25
Parameter
Symbol
Rating
Unit
Repetitive peak reverse voltage
VRRM
Continuous reverse voltage
Continuous forward current- 1 single diode loaded; IF double diode loaded;
250 m A
Repetitive peak forward...
