BAT74S Datasheet Schottky Barrier Double Diode

Manufacturer: Kexin Semiconductor

Overview: SMD Type Schottky Barrier Double Diode BAT74S Diodes.

Datasheet Details

Part number	BAT74S
Manufacturer	Kexin Semiconductor
File Size	35.50 KB
Description	Schottky Barrier Double Diode
Datasheet	BAT74S-Kexin.pdf

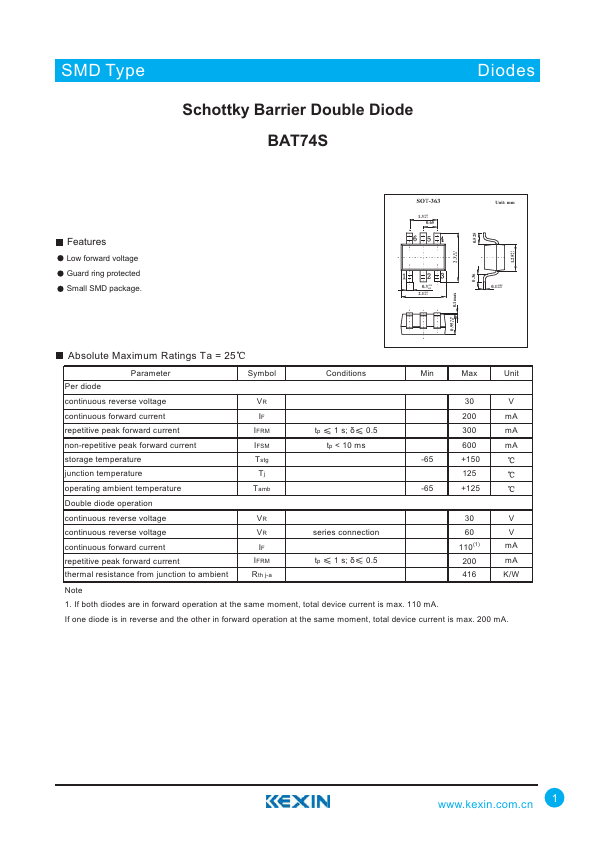

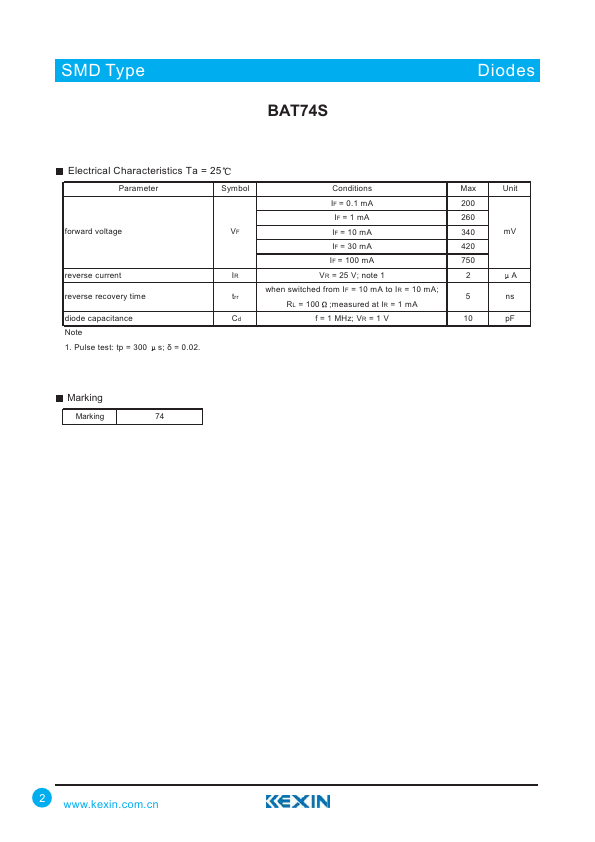

Low forward voltage Guard ring protected Small SMD package. SOT-363 1.3+0.1 -0.1 0.65 Unit: mm 0.525 +0.15 2.3 -0.15 0.36 0.3+0.1 -0.1 2.1+0.1 -0.1 0.1+0.05 -0.02 +0.1 1.25 -0.1 0.1max +0.05 0.95 -0.05 Absolute Maximum Ratings Ta = 25 Parameter Symbol Conditions Min Max Unit Per diode continuous reverse voltage VR 30 V continuous forward current IF 200 mA repetitive peak forward current IFRM tp 1 s; ä 0.5 300 mA non-repetitive peak forward current IFSM tp < 10 m.

Part Number	Description	Manufacturer
BAT74S	Dual Schottky barrier diode	NXP
BAT74S	Dual Schottky barrier diode	nexperia
BAT74S-Q	Schottky barrier dual diode	nexperia
BAT74	Schottky barrier double diode	NXP
BAT74	SMALL SIGNAL SCHOTTKY DIODE	STMicroelectronics
