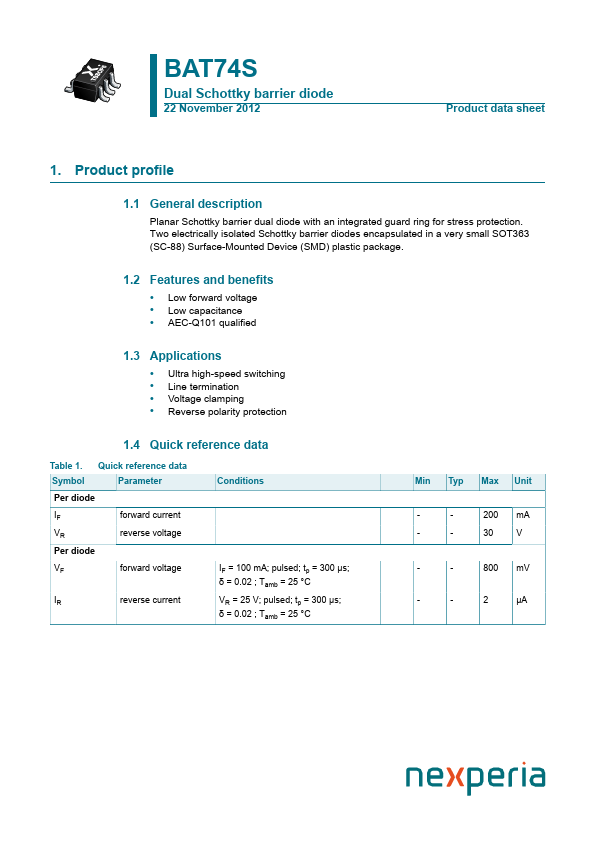

BAT74S datasheet by Nexperia.
| Part number | BAT74S |
|---|---|
| Datasheet | BAT74S-nexperia.pdf |
| File Size | 2.06 MB |
| Manufacturer | Nexperia |
| Description | Dual Schottky barrier diode |
|
|
Planar Schottky barrier dual diode with an integrated guard ring for stress protection. Two electrically isolated Schottky barrier diodes encapsulated in a very small SOT363 (SC-88) Surface-Mounted Device (SMD) plastic package.
