BAT754
BAT754 is Schottky barrier diode manufactured by Nexperia.
Schottky barrier diode
21 November 2024
Product data sheet
1. General description

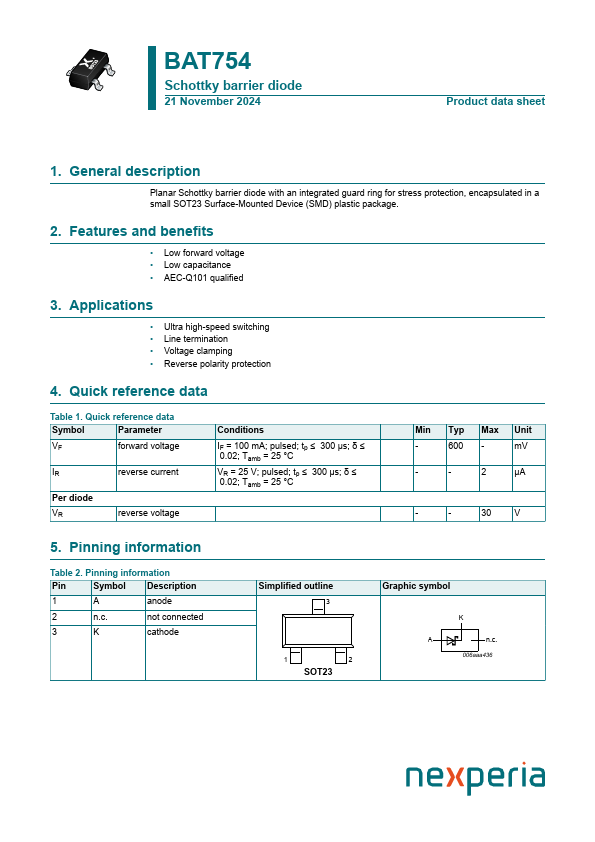

Planar Schottky barrier diode with an integrated guard ring for stress protection, encapsulated in a small SOT23 Surface-Mounted Device (SMD) plastic package.
2. Features and benefits
- Low forward voltage
- Low capacitance
- AEC-Q101 qualified
3. Applications
- Ultra high-speed switching
- Line termination
- Voltage clamping
- Reverse polarity protection
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
VF forward voltage
IR reverse current
Per diode VR reverse voltage
Conditions
IF = 100 mA; pulsed; tp ≤ 300 µs; δ ≤ 0.02; Tamb = 25 °C
VR = 25 V; pulsed; tp ≤ 300...
