BAT754A Datasheet Schottky Barrier Diodes

Manufacturer: Kexin Semiconductor

Overview: SMD Type Schottky barrier (double) diodes BAT754 series Diodes.

This datasheet includes multiple variants, all published together in a single manufacturer document.

Datasheet Details

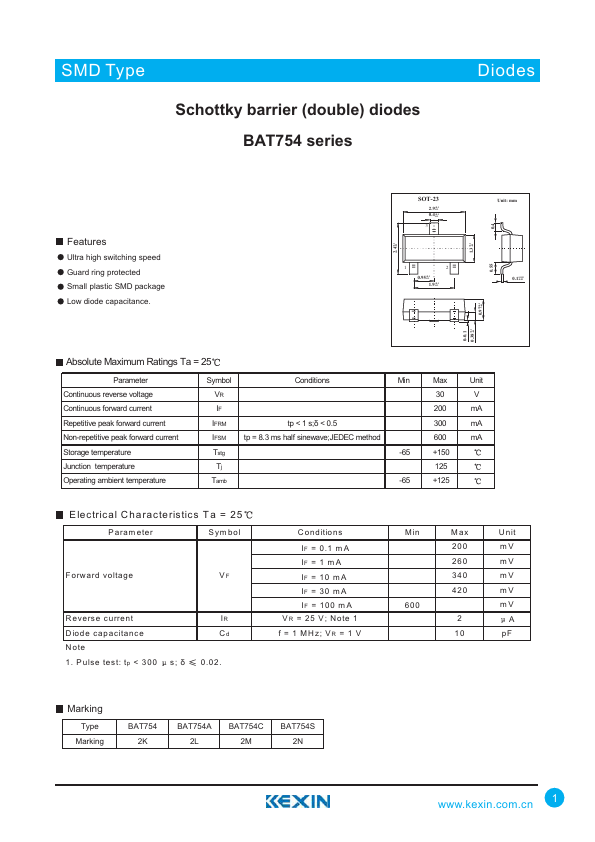

Ultra high switching speed Guard ring protected Small plastic SMD package Low diode capacitance. +0.1 2.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Continuous reverse voltage Continuous forward current Repetitive peak forward current Non-repetitive peak forward current Storage temperature Junction temperature Operating ambient temperature Symbol Conditions Min VR IF IFRM tp < 1 s;ä < 0.5 IFSM tp = 8.3 ms half.
