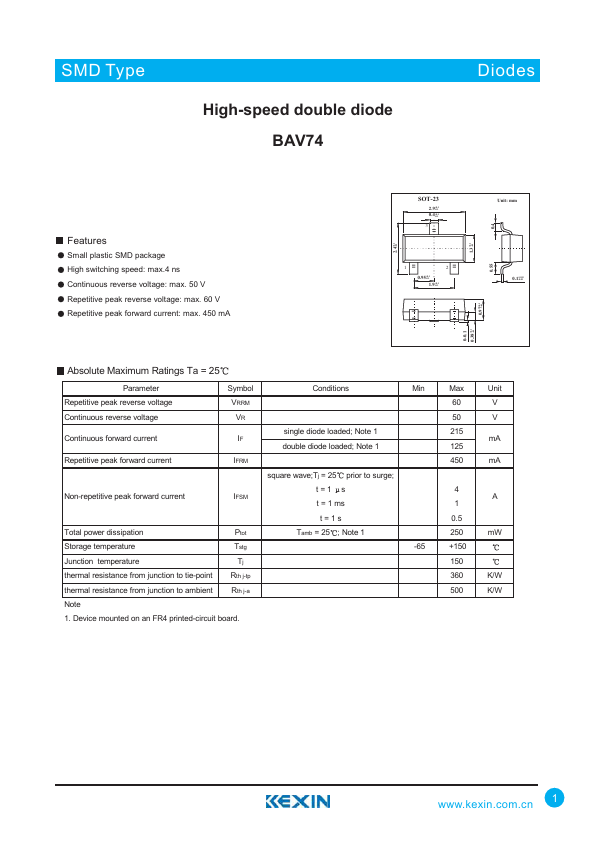

BAV74
BAV74 is High-speed double diode manufactured by Kexin Semiconductor.
Features
Small plastic SMD package High switching speed: max.4 ns Continuous reverse voltage: max. 50 V Repetitive peak reverse voltage: max. 60 V Repetitive peak forward current: max. 450 m A
+0.1 2.4 -0.1
SOT-23
2.9+0.1 -0.1
0.4+0.1 -0.1
0.95+0.1 -0.1 1.9+0.1 -0.1
0-0.1 +0.1 0.38
-0.1
+0.1 1.3 -0.1
+0.1 0.97 -0.1
Unit: mm
0.1+0.05 -0.01
1.Base 2.Emitter 3.collector
Absolute Maximum Ratings Ta = 25
Parameter
Symbol
Conditions
Min
Repetitive peak reverse voltage
VRRM
Continuous reverse voltage
Continuous forward current single diode loaded; Note 1 IF double diode loaded; Note 1
Repetitive peak forward current
IFRM square wave;Tj = 25 prior to surge;
Non-repetitive peak forward current
IFSM t=1 s t = 1 ms t=1s
Total power dissipation
Ptot
Tamb = 25 ; Note 1
Storage temperature
Tstg
-65
Junction...
