BC808 Datasheet PNP Silicon Af Transistors

Manufacturer: Kexin Semiconductor

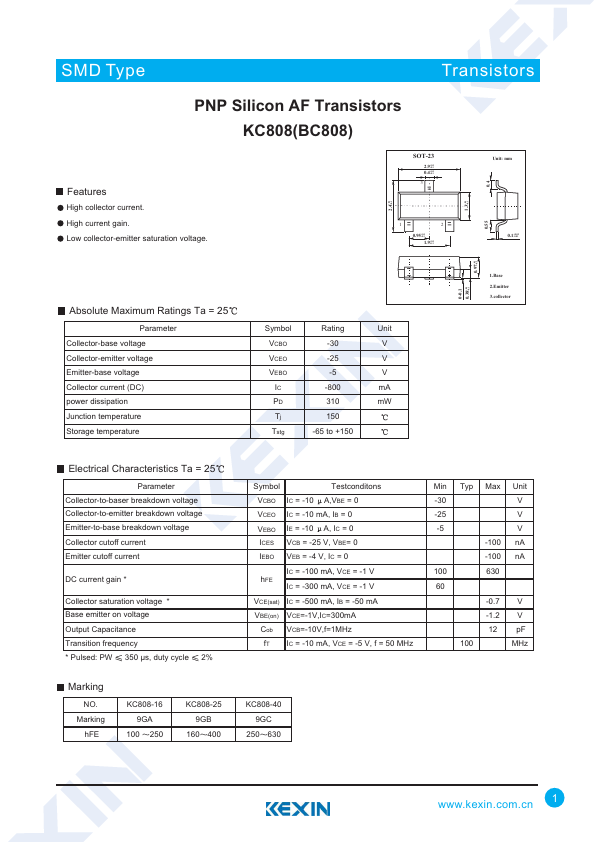

Overview: SMD Type Transistors PNP Silicon AF Transistors KC808(BC808).

Datasheet Details

High collector current. High current gain. Low collector-emitter saturation voltage. +0.1 2.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1+0.05 -0.01 +0.1 0.97 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current (DC) power dissipation Junction temperature Storage temperature Symbol Rating Unit VCBO -30 V VCEO -25 V VEBO -5 V IC.
