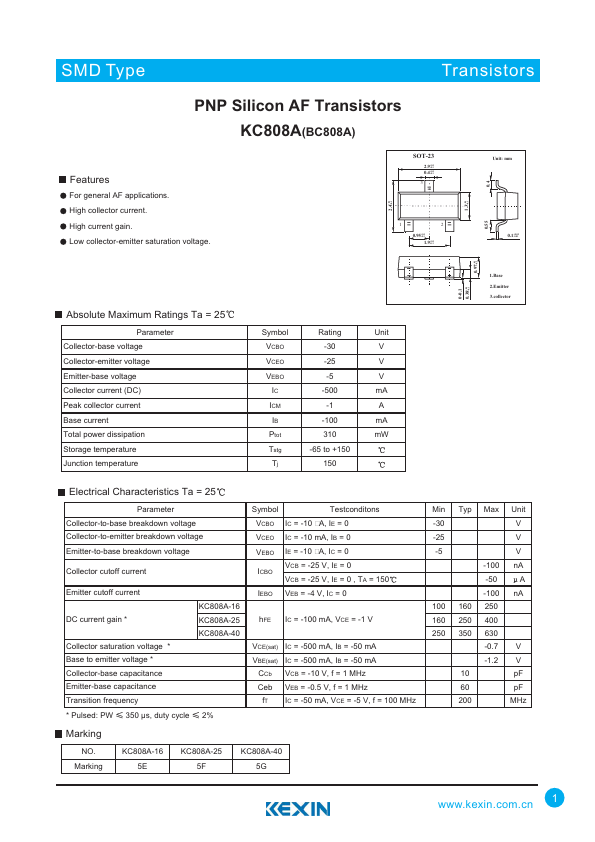

BC808A
BC808A is PNP Silicon AF Transistors manufactured by Kexin Semiconductor.
SMD Type
Transistors
PNP Silicon AF Transistors KC808A(BC808A)
Features
For general AF applications. High collector current. High current gain. Low collector-emitter saturation voltage.
+0.1 2.4 -0.1
SOT-23
2.9+0.1 -0.1
0.4+0.1 -0.1
0.95+0.1 -0.1 1.9+0.1 -0.1
+0.1 1.3 -0.1
Unit: mm 0.1+0.05
-0.01
+0.1 0.97...
