BC847BS Datasheet NPN General Purpose Double Transistor

Manufacturer: Kexin Semiconductor

Overview: SMD Type Transistors NPN General Purpose Double Transistor BC847BS.

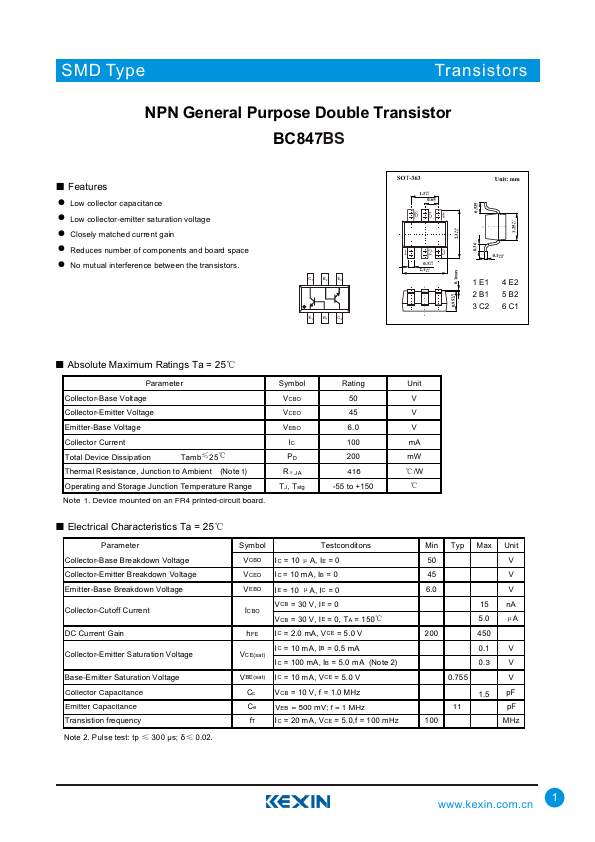

BC847BS datasheet preview

Datasheet Details

Part number	BC847BS
Manufacturer	Kexin Semiconductor
File Size	73.52 KB
Description	NPN General Purpose Double Transistor
Datasheet	BC847BS-Kexin.pdf

Key Features

s.
Low collector capacitance.
Low collector-emitter saturation voltage.
Closely matched current gain.
Reduces number of components and board space.
No mutual interference between the transistors. C1 B2 E2 E1 B1 C2 SOT-363 1.3+0.1 -0.1 0.65 6 54 0.525 Unit: mm +0.1 1.25 -0.1 +0.15 2.3 -0.15 0.36 1 23 0.3+0.1 -0.1 2.1+0.1 -0.1 +0.05 0.95 -0.05 0.1max 0.1+0.05 -0.02 1 E1 2 B1 3 C2 4 E2 5 B2 6 C1.
Absolute Maximum Ratings Ta = 25℃ Param ete r Collec.
