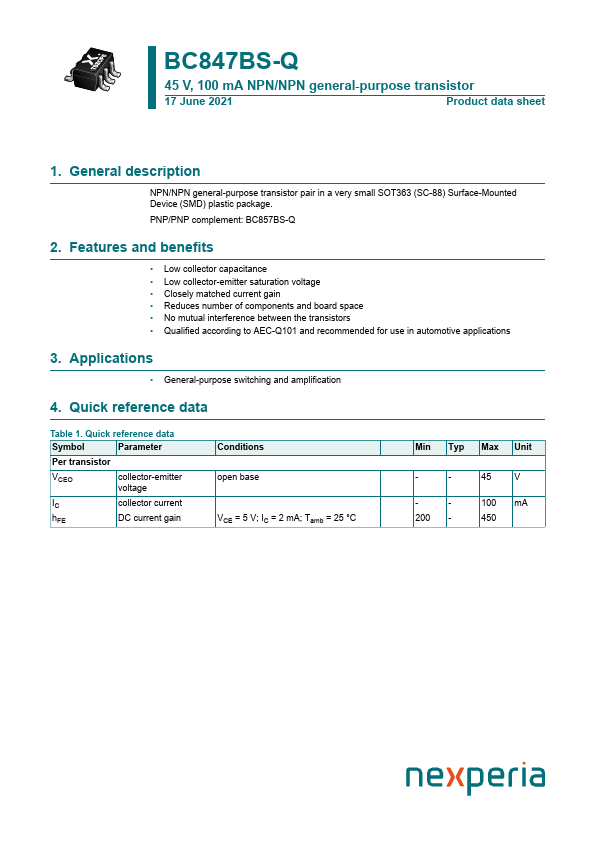

BC847BS-Q
BC847BS-Q is 45V 100mA NPN/NPN general-purpose transistor manufactured by Nexperia.
45 V, 100 mA NPN/NPN general-purpose transistor
17 June 2021
Product data sheet
1. General description
NPN/NPN general-purpose transistor pair in a very small SOT363 (SC-88) Surface-Mounted Device (SMD) plastic package. PNP/PNP plement: BC857BS-Q
2. Features and benefits
- Low collector capacitance
- Low collector-emitter saturation voltage
- Closely matched current gain
- Reduces number of ponents and board space
- No mutual interference between the transistors
- Qualified according to AEC-Q101 and remended for use in automotive applications
3. Applications
- General-purpose switching and amplification
4. Quick reference data
Table 1. Quick reference...
