BSH105 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 20V.
  • ID = 1.05 A (VGS = 10V).
  • RDS(ON) ＜ 200mΩ (VGS = 4.5V).
  • RDS(ON) ＜ 250mΩ (VGS = 2.5V).
  • RDS(ON) ＜ 300mΩ (VGS = 1.8V) D G S +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.38 -0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Drain-Gate voltage (RGS = 20 KΩ) Gate-Source Voltage Con.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BSH105 N-channel enhancement mode MOS transistor NXP
BSH105 20V N-Channel MOSFET VBsemi
BSH101 N-channel enhancement mode MOS transistor NXP
BSH102 N-channel enhancement mode MOS transistor NXP
BSH103 N-channel enhancement mode MOS transistor NXP

Other Datasheets by Kexin Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

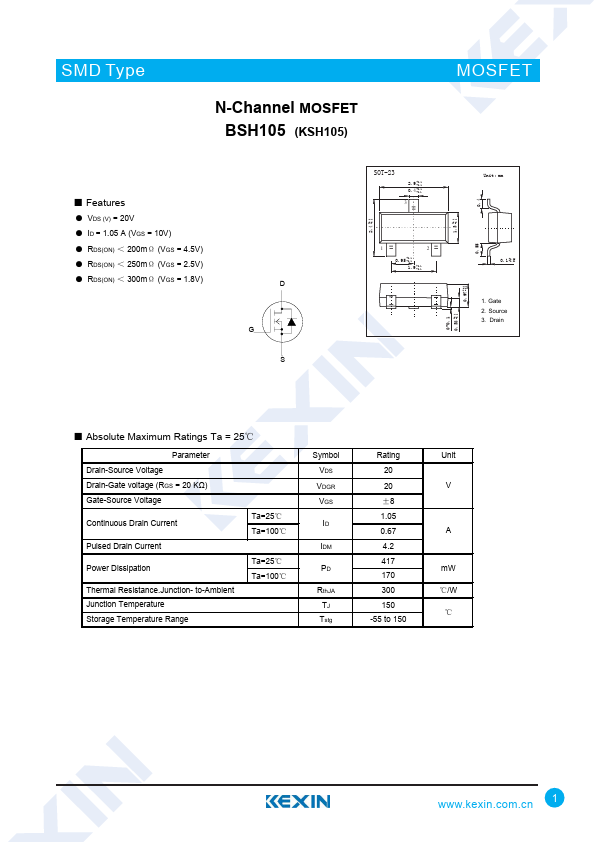

SMD Type N-Channel MOSFET BSH105 (KSH105) MOSFET ■ Features ● VDS (V) = 20V ● ID = 1.05 A (VGS = 10V) ● RDS(ON) ＜ 200mΩ (VGS = 4.5V) ● RDS(ON) ＜ 250mΩ (VGS = 2.5V) ● RDS(ON) ＜ 300mΩ (VGS = 1.8V) D G S +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.38 -0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Drain-Gate voltage (RGS = 20 KΩ) Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance.Junction- to-Ambient Junction Temperature Storage Temperature Range Ta=25℃ Ta=100℃ Ta=25℃ Ta=100℃ Symbol VDS VDGR VGS ID IDM PD RthJA TJ Tstg Rating 20 20 ±8 1.05 0.67 4.
