BSH105 - 20V N-Channel MOSFET

VBsemi

Key Features

Halogen-free According to IEC 61249-2-21 Definition.
TrenchFET® Power MOSFET.
100 % Rg Tested.
Compliant to RoHS Directive 2002/95/EC.

BSH105 20v n-channel mosfet by VBsemi - Datasheet Preview

Datasheet Details

Part number	BSH105
Manufacturer	VBsemi
File Size	241.46 KB
Description	20V N-Channel MOSFET
Datasheet	BSH105 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
BSH105	N-channel enhancement mode MOS transistor	NXP
BSH105	N-Channel MOSFET	Kexin
BSH101	N-channel enhancement mode MOS transistor	NXP
BSH102	N-channel enhancement mode MOS transistor	NXP
BSH103	N-channel enhancement mode MOS transistor	NXP

Other Datasheets by VBsemi

Part Number	Description
BSH103	N-Channel MOSFET
BSH114	N-Channel MOSFET
BSH201	P-Channel 60V MOSFET
BSH205	P-Channel 20V MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

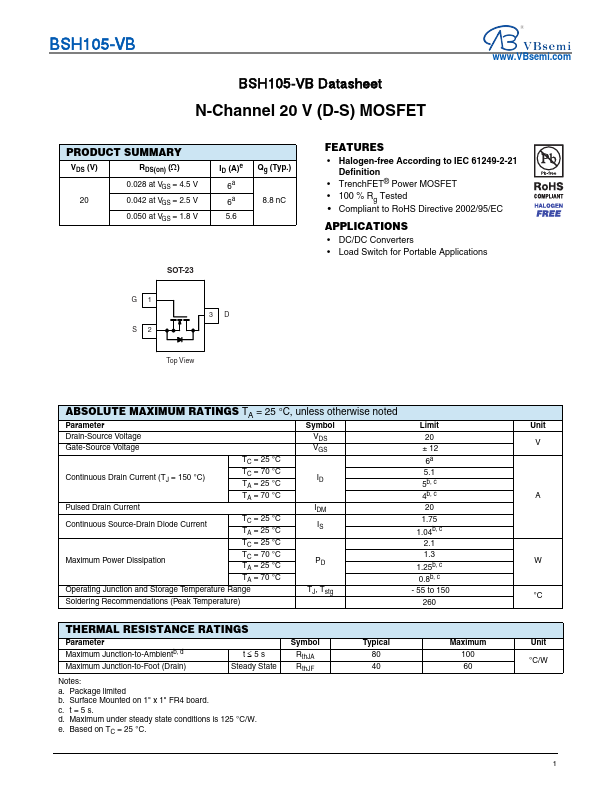

BSH105-VB BSH105-VB Datasheet N-Channel 20 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.028 at VGS = 4.5 V 20 0.042 at VGS = 2.5 V 0.050 at VGS = 1.8 V ID (A)e 6a 6a 5.6 Qg (Typ.) 8.
